KDJ120

Toyota LAND-CRUISER-PRADO · 2002 · 5,921 parts · 249 categories
KDJ120 ×

← Back to categories

5,921 items

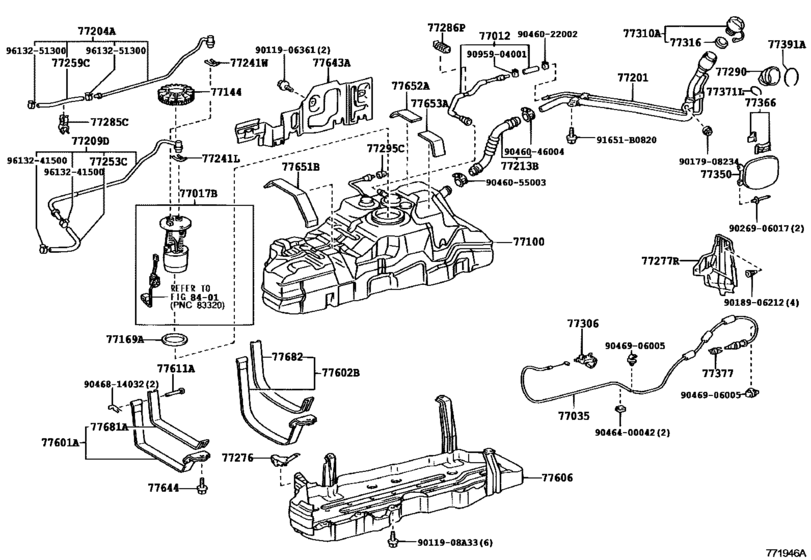

Fuel Tank & Tube ([08.2006 - ] FUEL TANK (0608- )KDJ120) 76
#OEMPart name
77012 77012-35060 Tube Sub-Assy, Fuel Tank Breather
77017 77010-35030 Tube Sub-Assy, Fuel Tank Vent
77017 77017-60470 Tube Sub-Assy, Fuel Tank Vent
77017 77020-60330 Tube Sub-Assy, Fuel Tank Vent
77035 77035-60090 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-3D531 Tank Sub-Assy, Fuel
77100 77001-60A30 Tank Sub-Assy, Fuel
77100 77001-60750 Tank Assy, Fuel
77100 77001-60A50 Tank Sub-Assy, Fuel
77144 77144-35010 Retainer, Fuel Pump Gauge
77169 77169-35010 Gasket, Fuel Suction Tube Set
77169 77169-30050 Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77201 77201-60820 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-60800 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-60850 Pipe Sub-Assy, Fuel Tank Inlet
77204 77204-60040 Tube, Fuel Tank Return
77204 77204-60050 Tube, Fuel Tank Return
77209 77209-35430 Tube Sub-Assy, Fuel Tank Main
77209 77209-60350 Tube Sub-Assy, Fuel Tank Main
77213 77213-35390 Hose, Fuel Tank To Filler Pipe
77213 77213-35380 Hose, Fuel Tank To Filler Pipe
77241 77241-35450 Tube, Fuel Tank Suction
77241 77241-60320 Clip, Tube Joint
77253 77259-25130 Hose, Fuel, No.2(For Fuel Main No.3 Tube)
77253 77259-60700 Hose, Fuel, No.1(For Fuel Main Tube)
77259 95337-08024 Hose, Fuel
77276 77276-35040 Protector, Fuel Hose
77277 77277-60080 Protector, Fuel Tank Filler Pipe
77285 77285-60810 Clamp, Fuel Tube - FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77286 77285-35620 Clamp, Fuel Tube, No.1
77290 77291-60100 Shield Assy, Fuel Tank Filler Pipe
77295 77295-27010 Grommet, Fuel Tube
77306 77306-28050-A0 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-28050-C0 Fuel Lid Lock Open Lever Sub-Assy (Black)
77306 77306-58010-A0 Lever Sub-Assy, Fuel Lid Lock Open (Ivory)
77306 77306-58010-C0 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-35050 Cap Assy, Fuel Tank
77316 77316-33042 Gasket, Fuel Tank Cap
77350 77350-60070 Lid Assy, Fuel Filler Opening
77366 77360-35040 Spring, Fuel Filler Opening Lid Hinge
77371 77371-35010 Ring, Fuel Tank Filler Pipe Shield
77377 77377-35010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-60050 Ring, Fuel Inlet Box
77601 77601-35090 Band Sub-Assy, Fuel Tank, No.1
77602 77602-35030 Band Sub-Assy, Fuel Tank, No.1
77606 77606-35060 Protector Sub-Assy, Fuel Tank, No.1
77611 77653-35040 Pin (For Fuel Tank Band)
77643 77643-35020 Protector, Fuel Tank, No.3
77643 77643-35040 Protector, Fuel Tank, No.3
77644 77644-35030 Bolt, Fuel Tank
77651 77651-35070 Cushion, Fuel Tank
77652 77652-35060 Cushion, Fuel Tank, No.2
77653 77653-35050 Cushion, Fuel Tank, No.3
77681 77681-35030 Seat, Fuel Tank Band
77681 77681-35031 Seat, Fuel Tank Band
77681 77681-60170 Seat, Fuel Tank Band, No.2
77682 77681-35040 Seat, Fuel Tank Band
77682 77681-35041 Seat, Fuel Tank Band
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08A33 BOLT
9011906361 90119-06361 BOLT WWASHER
9017908234 90179-08234 NUT
9018906212 90189-06212 GROMMET SCREW
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046004 90460-46004 Clamp (For Fuel Filler Pipe)
9046046004 90460-46006 Clamp (For Fuel Filler Pipe)
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046400042 90464-00042 Clamp (For Fuel Lid Lock Control Cable)
9046814032 90468-14032 CLIP
9046906005 90469-06005 Clamp(For Hood Lock Control Cable)
9095904001 90959-04001 Clip, Fuel Hose
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
