Search › Model › KDJ120

KDJ120

Toyota LAND-CRUISER-PRADO · 2002 · 5,921 parts · 249 categories

5,921 items

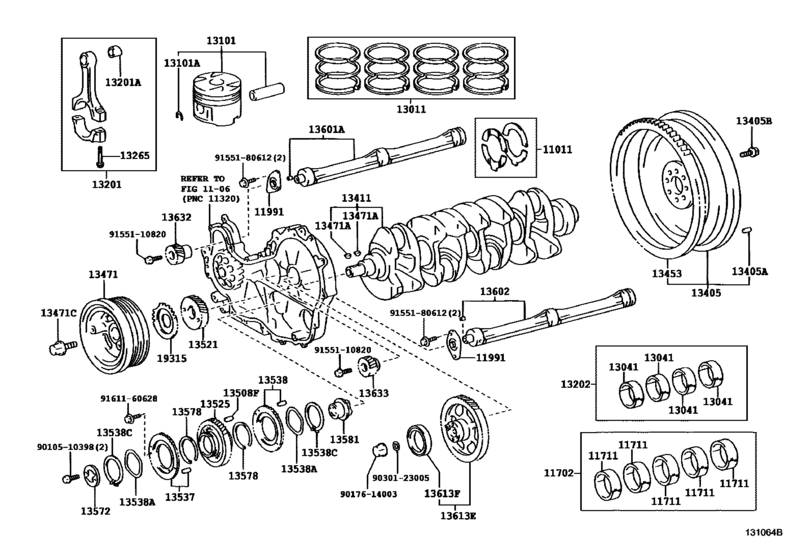

Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV) 100

#	OEM	Part name
11011	11011-30010	Washer Set, Crankshaft Thrust
11011	11012-30010	Washer Set, Crankshaft Thrust
11011	11013-30010	Washer Set, Crankshaft Thrust
11702	11704-30020	Bearing Set, Crankshaft (0.25)
11702	11704-30030	Bearing Set, Crankshaft
11702	11705-30020	Bearing Set, Crankshaft (0.50)
11702	11705-30030	Bearing Set, Crankshaft
11711	11701-30020-02	Bearing, Crankshaft
11711	11701-30020-03	Bearing, Crankshaft
11711	11701-30020-04	Bearing, Crankshaft
11711	11701-30020-05	Bearing, Crankshaft
11711	11701-30020-06	Bearing, Crankshaft
11711	11701-30030-02	Bearing, Crankshaft
11711	11701-30030-03	Bearing, Crankshaft
11711	11701-30030-04	Bearing, Crankshaft
11711	11701-30030-05	Bearing, Crankshaft
11711	11701-30030-06	Bearing, Crankshaft
11991	11991-67010	Washer, Balanceshaft Thrust
13011	13011-30090	Ring Set, Piston
13011	13011-30150	Ring Set, Piston
13011	13013-30090	Ring Set, Piston
13011	13013-30150	Ring Set, Piston
13011	13014-30090	Ring Set, Piston
13011	13014-30150	Ring Set, Piston
13011	13015-30090	Ring Set, Piston
13011	13015-30150	Ring Set, Piston
13041	13041-30020-02	Bearing, Connecting Rod
13041	13041-30020-03	Bearing, Connecting Rod
13041	13041-30020-04	Bearing, Connecting Rod
13041	13041-30020-05	Bearing, Connecting Rod
13041	13041-30020-06	Bearing, Connecting Rod
13041	13041-30030-02	Bearing, Connecting Rod
13041	13041-30030-03	Bearing, Connecting Rod
13041	13041-30030-04	Bearing, Connecting Rod
13041	13041-30030-05	Bearing, Connecting Rod
13041	13041-30030-06	Bearing, Connecting Rod
13101	13101-30090-01	Piston Sub-Assy, W/pin
13101	13101-30200-01	Piston Sub-Assy, W/pin
13101	13101-30090-02	Piston Sub-Assy, W/pin
13101	13101-30200-02	Piston Sub-Assy, W/pin
13101	13101-30090-03	Piston Sub-Assy, W/pin
13101	13101-30200-03	Piston Sub-Assy, W/pin
13101	13101-30150-01	Piston Sub-Assy, W/pin
13101	13101-30150-02	Piston Sub-Assy, W/pin
13101	13101-30150-03	Piston Sub-Assy, W/pin
13101	13103-30090	Piston Sub-Assy, W/pin
13101	13103-30200	Piston Sub-Assy, W/pin
13101	13103-30150	Piston Sub-Assy, W/pin
13101	13104-30090	Piston Sub-Assy, W/pin
13101	13104-30200	Piston Sub-Assy, W/pin
13101	13104-30150	Piston Sub-Assy, W/pin
13101	13105-30090	Piston Sub-Assy, W/pin
13101	13105-30200	Piston Sub-Assy, W/pin
13101	13105-30150	Piston Sub-Assy, W/pin
13101	90520-37014	Ring, Hole Snap(For Piston Pin)
13201	13201-30020	Rod Sub-Assy, Connecting
13201	13201-30021	Rod Sub-Assy, Connecting
13201	90999-73143	Bush(For Connecting Rod Small End)
13201	90999-73156	Bush(For Connecting Rod Small End)
13202	13204-30020	Bearing Set, Connecting Rod (0.25)
13202	13204-30030	Bearing Set, Connecting Rod
13202	13205-30020	Bearing Set, Connecting Rod (0.50)
13202	13205-30030	Bearing Set, Connecting Rod
13265	13265-67021	Bolt, Connecting Rod
13405	13405-30040	Flywheel Sub-Assy
13405	90250-10192	Pin, Straight(For Timing Gear Cover Set)
13405	90105-13010	Bolt, Flywheel Setting
13405	13405-67030	Flywheel Sub-Assy
13405	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13411	13401-30010	Crankshaft
13453	13453-67030	Gear, Flywheel Ring
13471	13408-30010	Pulley, Crankshaft
13471	13408-30011	Pulley, Crankshaft
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90119-18003	Bolt(For Crankshaft Pulley Set)
13508	90250-05027	Pin, Straight
13521	13521-30020	Gear Or Sprocket, Crankshaft Timing
13521	13521-67020	Gear Or Sprocket, Crankshaft Timing
13525	13508-67011	Gear, Idle, No.1
13537	13537-67900	Gear, Idle Sub, No.1
13538	13538-67900	Gear, Idle Sub, No.2
13538	90206-69001	Washer, Wave
13538	90520-58002	Ring, Shaft Snap
13572	13572-67041	Plate, Idle Gear Thrust
13578	13578-67010	Spring, Idle Gear
13581	13581-67041	Shaft, Idle Gear, No.1
13601	13601-67020	Balanceshaft Sub-Assy, No.1
13602	13602-67020	Balanceshaft Sub-Assy, No.2
13602	13602-0L020	Balanceshaft Sub-Assy, No.2
13613	13603-30020	Gear, Injection
13613	90363-67001	Bearing, Radial Ball
13632	13632-67010	Gear, Balanceshaft Driven, No.1
13633	13633-67010	Gear, Balanceshaft Driven, No.2
19315	19315-30010	Plate, Crank Angle Sensor, No.1
9010510398	90105-10398	BOLT WASHER BASED
9017614003	90176-14003	NUT CAP
9030123005	90301-23005	O-RING
9155110820	91551-10820	New Genuine Part
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9161160628	91611-60628	Bolt, Hexagon

OEM	Part name	Category
11011-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11012-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11013-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30020-06	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30030-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30030-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30030-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30030-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11701-30030-06	Bearing, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11704-30020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11704-30030	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11705-30020	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11705-30030	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
11991-67010	Washer, Balanceshaft Thrust	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13011-30090	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13011-30150	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13013-30090	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13013-30150	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13014-30090	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13014-30150	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13015-30090	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13015-30150	Ring Set, Piston	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30020-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30020-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30020-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30020-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30020-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30030-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30030-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30030-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30030-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13041-30030-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30090-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30090-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30090-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30150-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30150-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30150-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30200-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30200-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13101-30200-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13103-30090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13103-30150	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13103-30200	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13104-30090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13104-30150	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13104-30200	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13105-30090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13105-30150	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13105-30200	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13201-30020	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13201-30021	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13204-30020	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13204-30030	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13205-30020	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13205-30030	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13265-67021	Bolt, Connecting Rod	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13401-30010	Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13405-30040	Flywheel Sub-Assy	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13405-67030	Flywheel Sub-Assy	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13408-30010	Pulley, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13408-30011	Pulley, Crankshaft	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13453-67030	Gear, Flywheel Ring	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13508-67011	Gear, Idle, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13521-30020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13521-67020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13537-67900	Gear, Idle Sub, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13538-67900	Gear, Idle Sub, No.2	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13572-67041	Plate, Idle Gear Thrust	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13578-67010	Spring, Idle Gear	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13581-67041	Shaft, Idle Gear, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13601-67020	Balanceshaft Sub-Assy, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13602-0L020	Balanceshaft Sub-Assy, No.2	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13602-67020	Balanceshaft Sub-Assy, No.2	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13603-30020	Gear, Injection	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13632-67010	Gear, Balanceshaft Driven, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
13633-67010	Gear, Balanceshaft Driven, No.2	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
19315-30010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90105-10398	BOLT WASHER BASED	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90105-13010	Bolt, Flywheel Setting	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90119-18003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90176-14003	NUT CAP	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90206-69001	Washer, Wave	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90250-05027	Pin, Straight	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90301-23005	O-RING	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90363-67001	Bearing, Radial Ball	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90520-37014	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90520-58002	Ring, Shaft Snap	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90999-73143	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
90999-73156	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
91551-10820	New Genuine Part	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
91611-60628	Bolt, Hexagon	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([08.2006 - ] (0608- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 249
Collected: 2026-08-02
