Search › Model › KDH227
KDH227

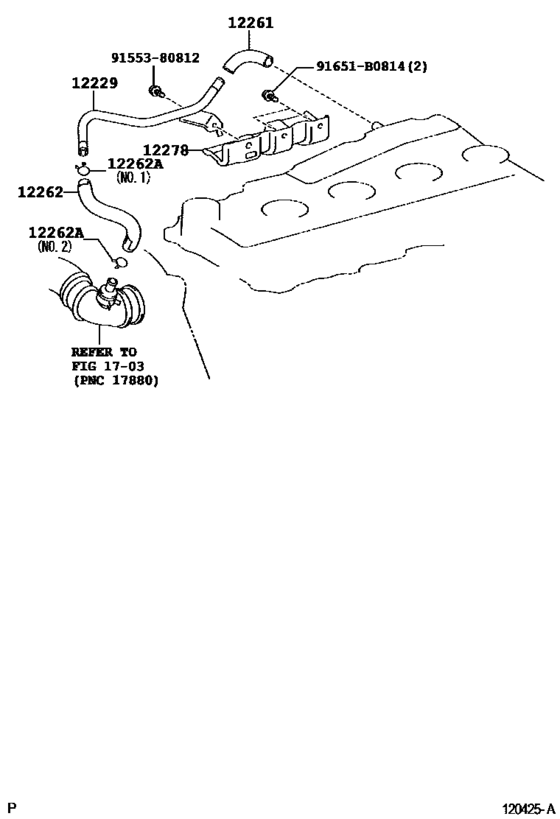

Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) 9
| # | OEM | Part name |
|---|---|---|
| 12229 | 12229-30030 | Pipe, Ventilation |
| 12261 | 12261-30040 | Hose, Ventilation |
| 12262 | 12262-30020 | Hose, Ventilation, No.2 |
| 12262 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-23002 | Clip Or Clamp(For Ventilation Hose) |
| 12278 | 12278-30040 | Insulator, Ventilation Hose Heat |
| 91651 | 91651-B0814 | Bolt with washer |
| 91651 | 90119-A0109 | New Genuine Part |
| 9155380812 | 91553-80812 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12229-30030 | Pipe, Ventilation | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 12261-30040 | Hose, Ventilation | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 12262-30020 | Hose, Ventilation, No.2 | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 12278-30040 | Insulator, Ventilation Hose Heat | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 90119-A0109 | New Genuine Part | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 90467-23002 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 91553-80812 | New Genuine Part | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
| 91651-B0814 | Bolt with washer | Ventilation Hose ([08.2004 - 09.2007] (0408-0709)2KDFTV) |
