KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories
KDH227 ×

← Back to categories

4,297 items

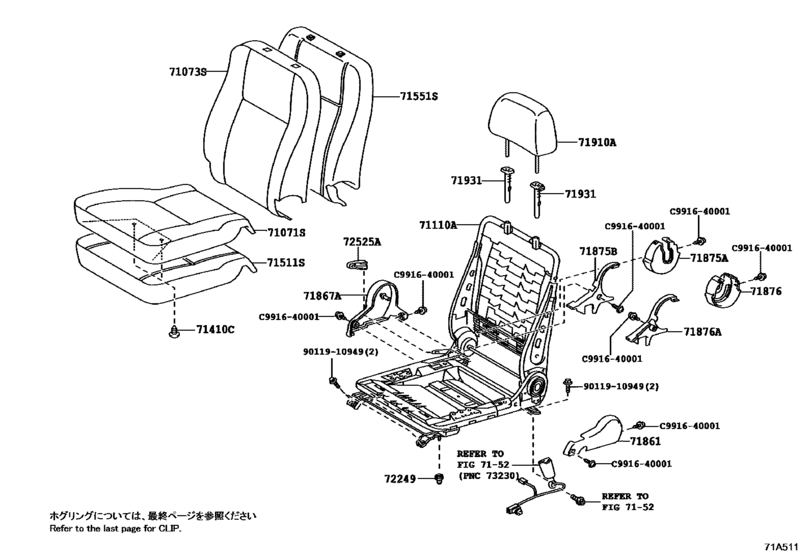

Seat & Seat Track ([08.2004 - 09.2007] ｳﾝﾃﾝｾｷ (0408-0709)KDH20#,222,227..GL,SGL) 27
#OEMPart name
71071 71071-26A60-B5 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-26A10-B3 Cover, Front Seat Back, Rh(For Separate Type)
71110 71110-26020 Frame Assy, Front Seat W/adjuster, Rh
71110 71110-26021 Frame Assy, Front Seat W/adjuster, Rh
71410 90467-08186-C0 Clip(For Front Bumper), No.1
71410 90467-08188 Clip, Radiator Support To Frame
71511 71511-26170 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-26280 Pad, Front Seat Back, Rh(For Separate Type)
71861 71861-26010-B0 Shield, Front Seat Cushion, Inner Rh
71867 71867-26010-B0 Shield, Front Seat Cushion, Inner No.1 Rh
71875 71875-26010-B0 Cover, Reclining Adjuster Inside, Rh
71875 71875-26010-B1 Cover, Reclining Adjuster Inside, Rh
71875 71875-26020-B0 Cover, Reclining Adjuster Inside, Rh
71875 71875-26020-B1 Cover, Reclining Adjuster Inside, Rh
71876 71876-26010-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-26010-B1 Cover, Reclining Adjuster Inside, Lh
71876 71876-26030-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-26030-B1 Cover, Reclining Adjuster Inside, Lh
71910 71940-26360-B2 Headrest Assy, Front Seat
71910 71940-26364-B2 Headrest Assy, Front Seat
71931 71930-42020-B8 Support, Front Seat Headrest
71931 71930-52030-B4 Support, Front Seat Headrest
71931 71931-42020-B8 Support, Front Seat Headrest
72249 72249-26020 Guide, Seat Track Locking
72249 72249-26030 Guide, Seat Track Locking
72525 72525-26080-B0 Handle, Reclining Adjuster Release, Rh
9011910949 90119-10949 BOLT WWASHER
