Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories
KDH227 ×

← Back to categories

4,297 items

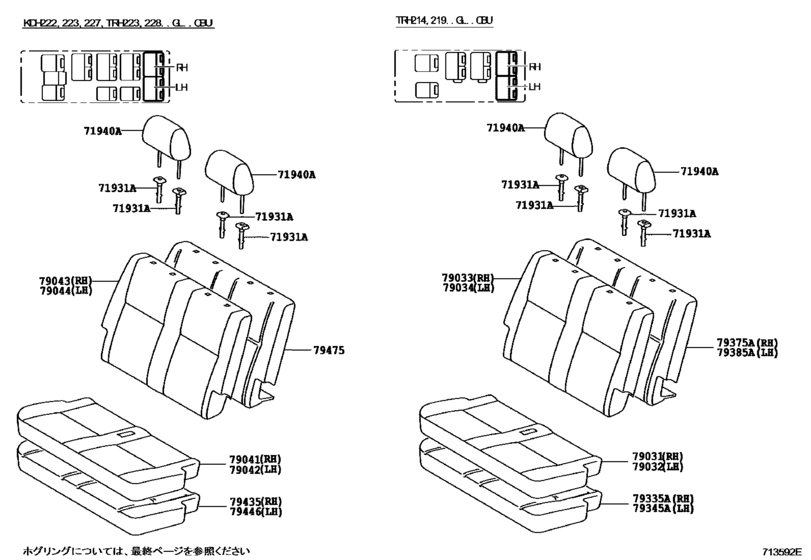

Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ ｽﾍﾟｰｽｱｯﾌﾟ ｼｰﾄ(ﾘﾔ NO.3 ｼｰﾄ) (0408-1205)GL..CBU) 23
#OEMPart name
71931 71930-42020-B8 Support, Front Seat Headrest
71931 71930-52030-B4 Support, Front Seat Headrest
71931 71930-52030-B8 Support, Front Seat Headrest
71931 71931-42020-B8 Support, Front Seat Headrest
71940 71940-26360-B2 Headrest Assy, Front Seat
71940 71940-26364-B2 Headrest Assy, Front Seat
79031 79021-26450-B2 Cover Sub-Assy, No.1 Seat Cushion
79031 79021-26450-B5 Cover Sub-Assy, No.1 Seat Cushion
79032 79012-26060-B1 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79012-26060-B2 Cover Sub-Assy, No.3 Seat Cushion, Lh
79033 79013-26A20-B3 Cover Sub-Assy, No.1 Seat Back
79033 79013-26A20-B6 Cover Sub-Assy, No.1 Seat Back
79041 79021-26540-B2 Cover Sub-Assy, No.4 Seat Cushion, Rh
79042 79022-26140-B2 Cover Sub-Assy, No.4 Seat Cushion, Lh
79043 79023-26470-B3 Cover Sub-Assy, No.4 Seat Back, Rh
79044 79024-26030-B3 Cover Sub-Assy, No.4 Seat Back, Lh
79335 79235-26050 Pad, No.1 Seat Cushion
79345 79136-26050 Pad, No.2 Seat Cushion, Lh
79375 79175-26280 Pad, No.1 Seat Back
79435 79235-26110 Pad, No.4 Seat Cushion
79446 79245-26020 Pad, No.4 Seat Cushion, Lh
79475 79275-26110 Pad, No.3 Seat Back, Rh
79475 79285-26020 Pad, No.3 Seat Back, Lh
