KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

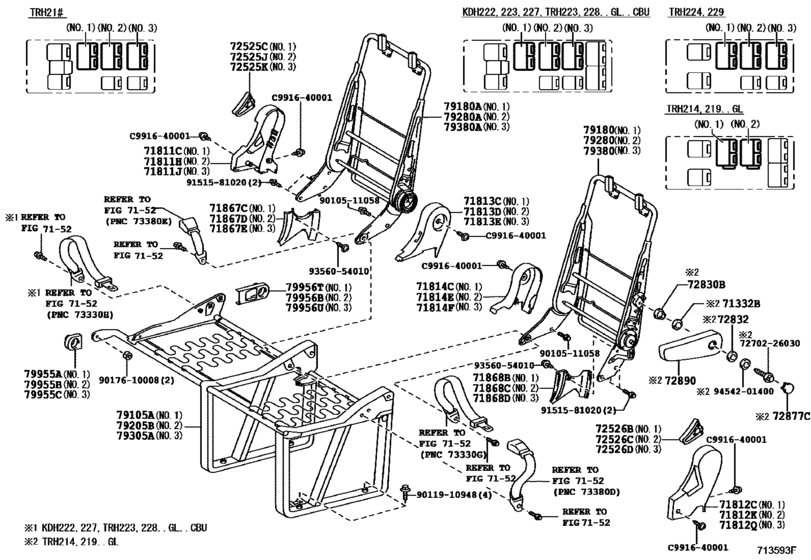

Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU) 22

#	OEM	Part name
71811	71811-26240-B0	Cover, Reclining Adjuster, Rh
71812	71812-26230-B0	Cover, Reclining Adjuster, Lh
71812	71812-26231-B0	Cover, Reclining Adjuster, Lh
71813	71813-26020-B0	Shield, Front Seat Back, Rh
71814	71814-26020-B0	Shield, Front Seat Back, Lh
71867	71867-26060-B0	Shield, Front Seat Cushion, Inner No.1 Rh
71868	71868-26040-B0	Shield, Rear Seat Cushion, Inner No.1 Lh
72525	72525-26090-B0	Handle, Reclining Adjuster Release, No.1 Rh
72526	72526-26040-B0	Handle, Reclining Adjuster Release, No.1 Lh
79105	79205-26230	Leg Sub-Assy, No.1 Seat, Rh
79180	79290-26020	Spring Assy, No.1 Seat Back
79180	79280-26080	Spring Assy, No.1 Seat Back, Rh
79205	79205-26210	Leg Sub-Assy, No.2 Seat, Rh
79955	79967-26010	Cover, Rear Seat Front Bracket, Rh
79956	79968-26010	Cover, Rear Seat Leg Side, Rh
7270226030	72702-26030	Bracket Sub-assy, Rear Seat Back Striker
9010511058	90105-11058	BOLT FLANGE
9011910948	90119-10948	New Genuine Part
9017610008	90176-10008	NUT
9151581020	91515-81020	New Genuine Part
9356054010	93560-54010	SCREW
9454201400	94542-01400	Spacer, Center Seat Hinge

OEM	Part name	Category
71811-26240-B0	Cover, Reclining Adjuster, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71812-26230-B0	Cover, Reclining Adjuster, Lh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71812-26231-B0	Cover, Reclining Adjuster, Lh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71813-26020-B0	Shield, Front Seat Back, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71814-26020-B0	Shield, Front Seat Back, Lh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71867-26060-B0	Shield, Front Seat Cushion, Inner No.1 Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
71868-26040-B0	Shield, Rear Seat Cushion, Inner No.1 Lh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
72525-26090-B0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
72526-26040-B0	Handle, Reclining Adjuster Release, No.1 Lh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
72702-26030	Bracket Sub-assy, Rear Seat Back Striker	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79205-26210	Leg Sub-Assy, No.2 Seat, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79205-26230	Leg Sub-Assy, No.1 Seat, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79280-26080	Spring Assy, No.1 Seat Back, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79290-26020	Spring Assy, No.1 Seat Back	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79967-26010	Cover, Rear Seat Front Bracket, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
79968-26010	Cover, Rear Seat Leg Side, Rh	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
90105-11058	BOLT FLANGE	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
90119-10948	New Genuine Part	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
90176-10008	NUT	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
91515-81020	New Genuine Part	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
93560-54010	SCREW	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
94542-01400	Spacer, Center Seat Hinge	Seat & Seat Track ([08.2004 - 05.2012] ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0408-1205)TRH214,219,224,229..CBU ; (0408-1205) KDH222,223,227,TRH223,228..GL..CBU)
