KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

← Back to categories

4,297 items

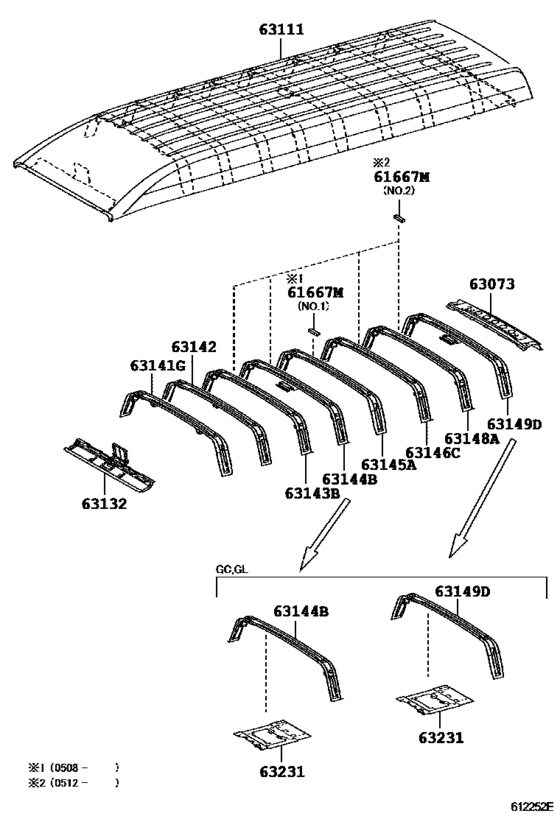

Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF) 14

#	OEM	Part name
61667	61667-26320	Seal, Roof Panel
63073	63073-26130	Frame Sub-Assy, Back Door Opening, Upper Outer
63111	63111-26500	Panel, Roof
63132	63102-26160	Panel, Windshield Header, Inner
63141	63103-26320	Reinforcement, Roof Panel, No.1
63142	63104-26220	Reinforcement, Roof Panel, No.2
63143	63105-26230	Reinforcement, Roof Panel, No.3
63143	63143-26170	Reinforcement, Roof Panel, No.3
63144	63106-26110	Reinforcement, Roof Panel, No.4
63145	63107-26130	Reinforcement, Roof Panel, No.5
63148	63105-26210	Reinforcement, Roof Panel, No.7
63148	63105-26211	Reinforcement, Roof Panel, No.7
63149	63108-26070	Reinforcement, Roof Panel, No.8
63231	63231-26180	Bracket, Room Lamp

OEM	Part name	Category
61667-26320	Seal, Roof Panel	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63073-26130	Frame Sub-Assy, Back Door Opening, Upper Outer	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63102-26160	Panel, Windshield Header, Inner	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63103-26320	Reinforcement, Roof Panel, No.1	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63104-26220	Reinforcement, Roof Panel, No.2	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63105-26210	Reinforcement, Roof Panel, No.7	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63105-26211	Reinforcement, Roof Panel, No.7	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63105-26230	Reinforcement, Roof Panel, No.3	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63106-26110	Reinforcement, Roof Panel, No.4	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63107-26130	Reinforcement, Roof Panel, No.5	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63108-26070	Reinforcement, Roof Panel, No.8	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63111-26500	Panel, Roof	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63143-26170	Reinforcement, Roof Panel, No.3	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
63231-26180	Bracket, Room Lamp	Roof Panel & Back Panel ([01.2005 - ] (0501-1205)TRH224..IV5 ; (0501- )TRH224..CBU ; (0501- )KDH22#,TRH221,223,226, 228,229..HRF)
