KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

← Back to categories

4,297 items

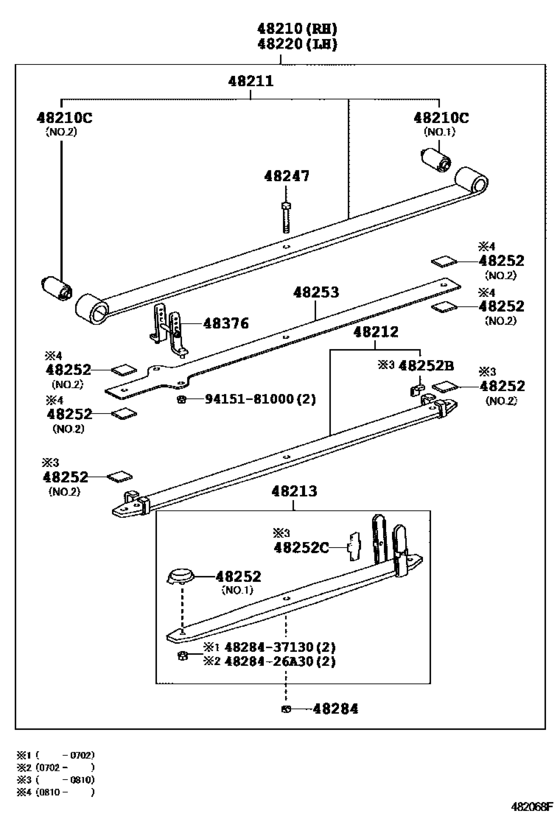

Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU) 17

#	OEM	Part name
48210	48210-26A60	Spring Assy, Rear Rh
48210	90389-14007	Bush(For Rear Spring Leaf)
48210	90389-14037	Bush(For Rear Spring Leaf)
48211	48201-26A60	Leaf, Rear Spring, No.1
48212	48202-26K10	Leaf, Rear Spring, No.2
48213	48203-26A60	Leaf, Rear Spring, No.3
48247	48247-26250	Bolt, Rear Spring, Center
48247	48247-26A10	Bolt, Rear Spring, Center
48252	48252-26A00	Silencer, Rear Spring
48252	48252-28170	Silencer, Rear Spring
48252	48252-37380	Silencer, Rear Spring
48252	48252-37630	Silencer, Rear Spring, No.2
48253	48253-26A60	Spacer, Rear Spring, No.1
48284	48284-26A30	Nut, Rear Spring Center Bolt
48284	48284-37130	Nut, Front Spring Center Bolt
48376	48376-26020	Bracket, Rear Leaf Spring Dynamic Danper
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
48201-26A60	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48202-26K10	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48203-26A60	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48210-26A60	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48247-26250	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48247-26A10	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48252-26A00	Silencer, Rear Spring	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48252-28170	Silencer, Rear Spring	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48252-37380	Silencer, Rear Spring	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48252-37630	Silencer, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48253-26A60	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48284-26A30	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
48376-26020	Bracket, Rear Leaf Spring Dynamic Danper	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
90389-14007	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
90389-14037	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
94151-81000	NUT FLANGE	Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,228..CBU)
