Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

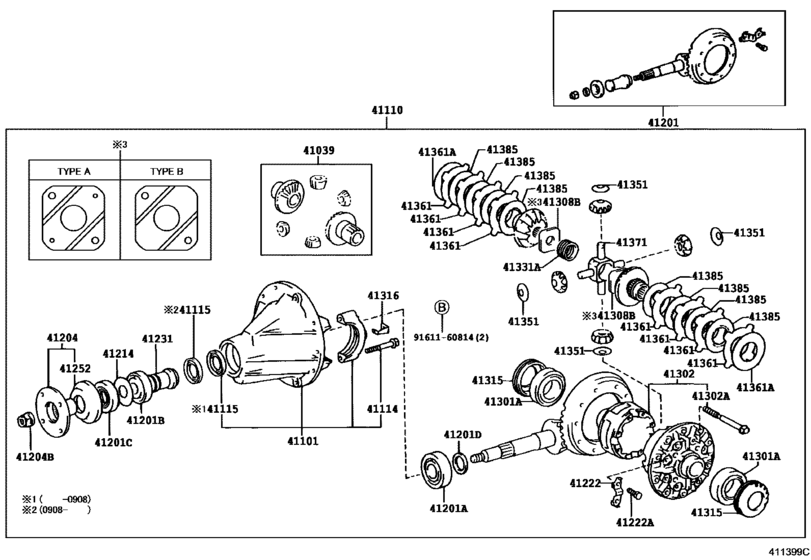

Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229) 71

#	OEM	Part name
41039	41039-34070	Gear Kit, Differential, Rear
41101	41101-35170	Carrier Sub-Assy, Differential, Rear
41101	41101-35172	Carrier Sub-Assy, Differential, Rear
41101	41115-35010	Ring, Differential Oil Storage
41110	41110-26440	Carrier Assy, Differential, Rear
41110	41110-26442	Carrier Assy, Differential, Rear
41110	41110-3D040	Carrier Assy, Differential, Rear
41110	41110-3D042	Carrier Assy, Differential, Rear
41114	90105-12053	Bolt (For Rear Differential Carrier)
41201	41201-80181	Final Gear Kit, Differential, Rear
41201	41201-80747	Final Gear Kit, Differential, Rear
41201	90366-35087	Bearing , Tapered Roller (for front drive pinion)
41201	90366-30067	Bearing (For Rear Drive Pinion Front)
41201	90311-41009	Seal, Oil (For Front Differential Carrier)
41201	90201-35497	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35498	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35499	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35500	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35501	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35502	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35503	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35504	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35505	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35506	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35507	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35508	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35509	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35510	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35511	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35512	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35513	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35514	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35515	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35516	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35517	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35518	Washer, Plate (For Rear Differential Drive Pinion)
41204	41204-35082	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90177-22003	Nut (For Rear Drive Pinion)
41214	41214-26011	Slinger, Rear Differential Drive Pinion Oil
41222	41222-35020	Plate, Rear Differential Ring Gear Set Bolt Lock
41222	90101-11353	Bolt (For Rear Differential Ring Gear Set)
41231	41231-24010	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-35041	Deflector, Dust (For Rear Differential)
41301	90366-50007	Bearing(For Rear Differential Case)
41302	41302-35040	Case Sub-Assy, Rear Differential
41302	41302-35041	CASE SUBASSY
41302	90105-11063	Bolt (For Rear Differential Ring Gear Set)
41302	41311-60060	Case Sub-Assy, Rear Differential
41302	41311-60061	CASE DIFFERENTIAL
41302	90105-10084	Bolt(For Rear Differential Case)
41302	90105-10570	Bolt(For Rear Differential Case)
41308	41308-35010	Member Kit, Clutch
41308	41388-35020	Retainer Sub-Assy, Spring
41315	41315-35020	Nut, Rear Differential Bearing Adjusting
41316	41316-35010	Lock, Rear Differential Bearing Adjusting Nut
41331	90501-65003	Spring, Compression
41351	41351-30052	Washer, Rear Differential Pinion Thrust
41351	41351-30060	Washer, Rear Differential Pinion Thrust
41361	41361-35161	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-35291	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-40021	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-40021	Washer, Rear Differential Side Gear Thrust, No.1
41361	41363-40021	Washer, Rear Differential Side Gear Thrust, No.1
41361	90564-50001	Washer, Plate (For Rear Differential Side Gear Shaft)
41361	90564-50002	Washer, Plate (For Rear Differential Side Gear Shaft)
41361	90564-50003	Washer, Plate (For Rear Differential Side Gear Shaft)
41361	90564-50004	Washer, Plate (For Rear Differential Side Gear Shaft)
41361	90564-50005	Washer, Plate (For Rear Differential Side Gear Shaft)
41371	41306-35040	Spider Sub-Assy, Front Differential
41385	41385-22020	Plate, clutch
9161160814	91611-60814	Bolt

OEM	Part name	Category
41039-34070	Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41101-35170	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41101-35172	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41110-26440	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41110-26442	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41110-3D040	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41110-3D042	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41115-35010	Ring, Differential Oil Storage	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41201-80181	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41201-80747	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41204-35082	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41214-26011	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41222-35020	Plate, Rear Differential Ring Gear Set Bolt Lock	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41231-24010	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41252-35041	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41302-35040	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41302-35041	CASE SUBASSY	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41306-35040	Spider Sub-Assy, Front Differential	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41308-35010	Member Kit, Clutch	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41311-60060	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41311-60061	CASE DIFFERENTIAL	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41315-35020	Nut, Rear Differential Bearing Adjusting	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41316-35010	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41351-30052	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41351-30060	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41361-35161	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41361-35291	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41361-40021	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41362-40021	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41363-40021	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41385-22020	Plate, clutch	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
41388-35020	Retainer Sub-Assy, Spring	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90101-11353	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-10084	Bolt(For Rear Differential Case)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-10570	Bolt(For Rear Differential Case)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-11063	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-12053	Bolt (For Rear Differential Carrier)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90177-22003	Nut (For Rear Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35497	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35498	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35499	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35500	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35501	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35502	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35503	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35504	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35505	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35506	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35507	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35508	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35509	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35510	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35511	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35512	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35513	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35514	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35515	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35516	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35517	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90201-35518	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90311-41009	Seal, Oil (For Front Differential Carrier)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90366-30067	Bearing (For Rear Drive Pinion Front)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90366-35087	Bearing , Tapered Roller (for front drive pinion)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90366-50007	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90501-65003	Spring, Compression	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90564-50001	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90564-50002	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90564-50003	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90564-50004	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90564-50005	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
91611-60814	Bolt	Rear Axle Housing & Differential ([08.2004 - ] W(LSD) (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
