Search › Model › KDH227
KDH227

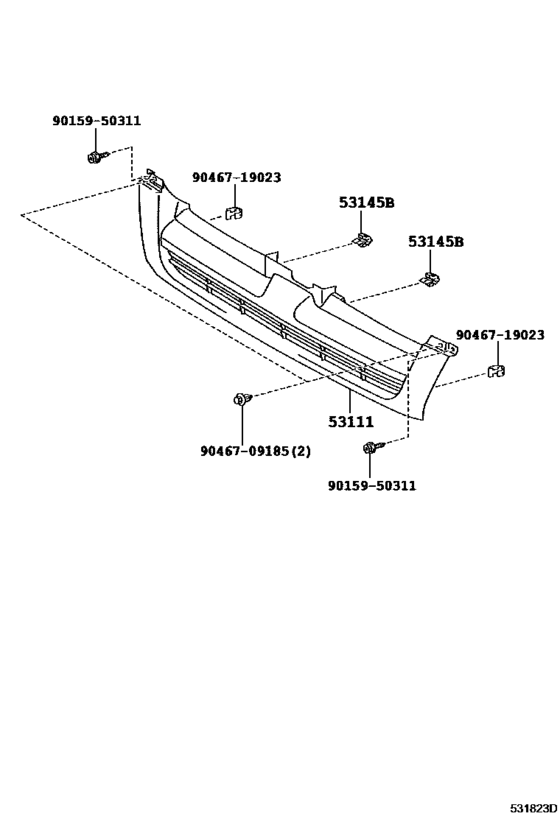

Radiator Grille ([08.2004 - 09.2007] (0408-0709)) 8
| # | OEM | Part name |
|---|---|---|
| 53111 | 53111-26370 | Grille, Radiator |
| 53111 | 53111-26360 | Grille, Radiator |
| 53111 | 53111-26450 | Grille, Radiator |
| 53145 | 53145-26010 | Clip, Radiator Grille Garnish |
| 9015950311 | 90159-50311 | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER |
| 9046709185 | 90467-09185 | CLIPS |
| 9046719023 | 90467-19023 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 53111-26360 | Grille, Radiator | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 53111-26370 | Grille, Radiator | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 53111-26450 | Grille, Radiator | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 53145-26010 | Clip, Radiator Grille Garnish | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 90159-50311 | SCREW | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 90159-A0034 | SCREW WWASHER | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 90467-09185 | CLIPS | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
| 90467-19023 | CLIP | Radiator Grille ([08.2004 - 09.2007] (0408-0709)) |
