Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

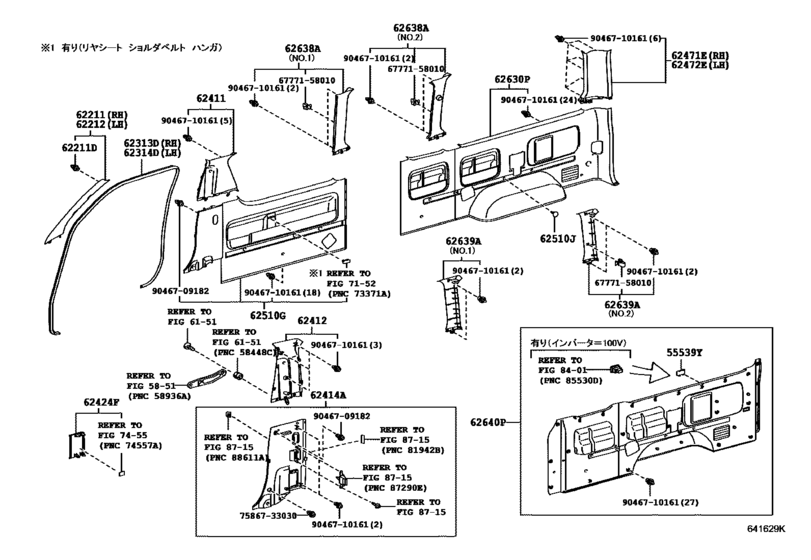

Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL) 38

#	OEM	Part name
55539	55539-28120-B4	Cover, Spare Switch Hole
62211	62210-26050-B0	Garnish, Front Pillar, Rh
62211	62210-26052-B0	Garnish, Front Pillar, Rh
62211	62210-26051-B0	Garnish, Front Pillar, Rh
62211	90467-10161	Clip
62212	62220-26030-B0	Garnish, Front Pillar, Lh
62212	62220-26032-B0	Garnish, Front Pillar, Lh
62212	62220-26031-B0	Garnish, Front Pillar, Lh
62313	62313-26010-C0	Trim, Front Door Opening, Rh
62314	62314-26010-C0	Trim, Front Door Opening, Lh
62411	62410-26110-B0	Garnish, Center Pillar, Rh
62412	62420-26070-B0	Garnish, Center Pillar, Lh
62414	62414-26330-B1	Garnish, Center Pillar, Lower Lh
62414	62414-26430-B0	Garnish, Center Pillar, Lower Lh
62414	62414-26340-B1	Garnish, Center Pillar, Lower Lh
62424	62424-26030-B1	Cover, Center Pillar Garnish, Lower Lh
62471	62471-26260-B0	Garnish, Roof Side, Inner Upper Rh
62472	62472-26250-B0	Garnish, Roof Side, Inner Upper Lh
62472	62472-26230-B0	Garnish, Roof Side, Inner Upper Lh
62510	62510-26690-B1	Trim Assy, Side No.1, Rh
62510	67771-26230-B0	Clip(For Quarter Trim Front Panel)
62510	62510-26700-B1	Trim Assy, Side No.1, Rh
62630	62630-26A70-B2	Panel Assy, Quarter Trim, Rear Rh
62630	62630-26A90-B2	Panel Assy, Quarter Trim, Rear Rh
62638	62638-26060-B0	Garnish, Quarter Pillar, Rh
62638	62638-26090-B0	Garnish, Quarter Pillar, Rh
62639	62639-26060-B0	Garnish, Quarter Pillar, Lh
62639	62639-26063-B0	Garnish, Quarter Pillar, Lh
62639	62639-26061-B0	Garnish, Quarter Pillar, Lh
62639	62639-26090-B0	Garnish, Quarter Pillar, Lh
62639	62639-26050-B0	Garnish, Quarter Pillar, Lh
62639	62639-26051-B0	Garnish, Quarter Pillar, Lh
62639	62639-26080-B0	Garnish, Quarter Pillar, Lh
62640	62640-26B20-B1	Panel Assy, Quarter Trim, Rear Lh
62640	62640-26B50-B1	Panel Assy, Quarter Trim, Rear Lh
6777158010	67771-58010	Clip, Front Pillar Garnish
7586733030	75867-33030	Clip (For Center Lower Garnish)
9046709182	90467-09182	Clip(For Rear Door Trim Board)

OEM	Part name	Category
55539-28120-B4	Cover, Spare Switch Hole	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62210-26050-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62210-26051-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62210-26052-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62220-26030-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62220-26031-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62220-26032-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62313-26010-C0	Trim, Front Door Opening, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62314-26010-C0	Trim, Front Door Opening, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62410-26110-B0	Garnish, Center Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62414-26330-B1	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62414-26340-B1	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62414-26430-B0	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62420-26070-B0	Garnish, Center Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62424-26030-B1	Cover, Center Pillar Garnish, Lower Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62471-26260-B0	Garnish, Roof Side, Inner Upper Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62472-26230-B0	Garnish, Roof Side, Inner Upper Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62472-26250-B0	Garnish, Roof Side, Inner Upper Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62510-26690-B1	Trim Assy, Side No.1, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62510-26700-B1	Trim Assy, Side No.1, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62630-26A70-B2	Panel Assy, Quarter Trim, Rear Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62630-26A90-B2	Panel Assy, Quarter Trim, Rear Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62638-26060-B0	Garnish, Quarter Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62638-26090-B0	Garnish, Quarter Pillar, Rh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26050-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26051-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26060-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26061-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26063-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26080-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62639-26090-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62640-26B20-B1	Panel Assy, Quarter Trim, Rear Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
62640-26B50-B1	Panel Assy, Quarter Trim, Rear Lh	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
67771-26230-B0	Clip(For Quarter Trim Front Panel)	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
67771-58010	Clip, Front Pillar Garnish	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
75867-33030	Clip (For Center Lower Garnish)	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
90467-09182	Clip(For Rear Door Trim Board)	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)
90467-10161	Clip	Inside Trim Board ([01.2005 - ] (0501- )KDH222,223,227,TRH223,224,228,229..GC ,GL)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 220
Collected: 2026-08-03
