KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

← Back to categories

4,297 items

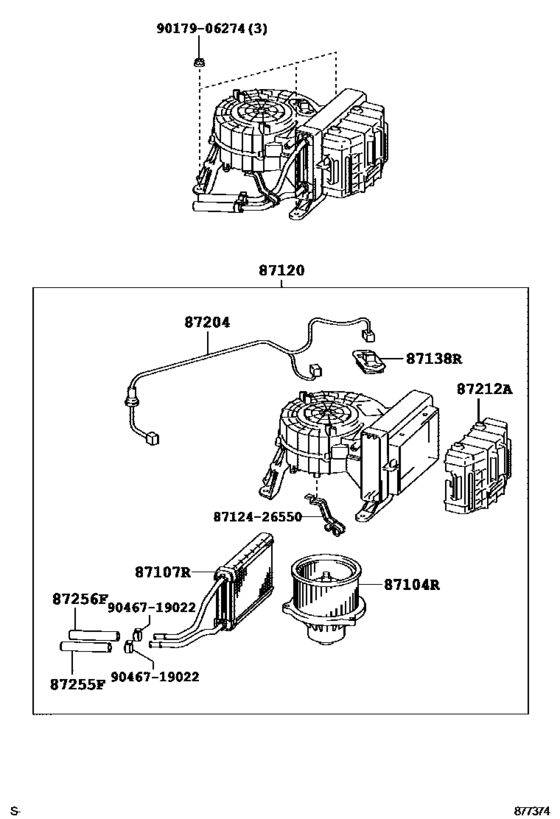

Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5) 11

#	OEM	Part name
87104	87104-26090	Motor Sub-Assy, Rear Heater Blower
87107	87107-26300	Unit Sub-Assy, Rear Heater
87120	87110-26450	Heater Assy, Rear
87138	87138-52010	Resistor, Blower
87204	87204-26030	Wire & Piping Sub-Assy, Heater Parts
87212	87211-26180	Duct, Air, Rear No.1
87255	87245-26E00	Hose, Rear Heater Water Inlet, F(For Heater Unit)
87256	87245-26E10	Hose, Rear Heater Water Outlet, F (For Heater Unit)
8712426550	87124-26550	Clamp, Heater
9017906274	90179-06274	Nut
9046719022	90467-19022	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
87104-26090	Motor Sub-Assy, Rear Heater Blower	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87107-26300	Unit Sub-Assy, Rear Heater	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87110-26450	Heater Assy, Rear	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87124-26550	Clamp, Heater	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87138-52010	Resistor, Blower	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87204-26030	Wire & Piping Sub-Assy, Heater Parts	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87211-26180	Duct, Air, Rear No.1	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87245-26E00	Hose, Rear Heater Water Inlet, F(For Heater Unit)	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
87245-26E10	Hose, Rear Heater Water Outlet, F (For Heater Unit)	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
90179-06274	Nut	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
90467-19022	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - 09.2007] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5)
