KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

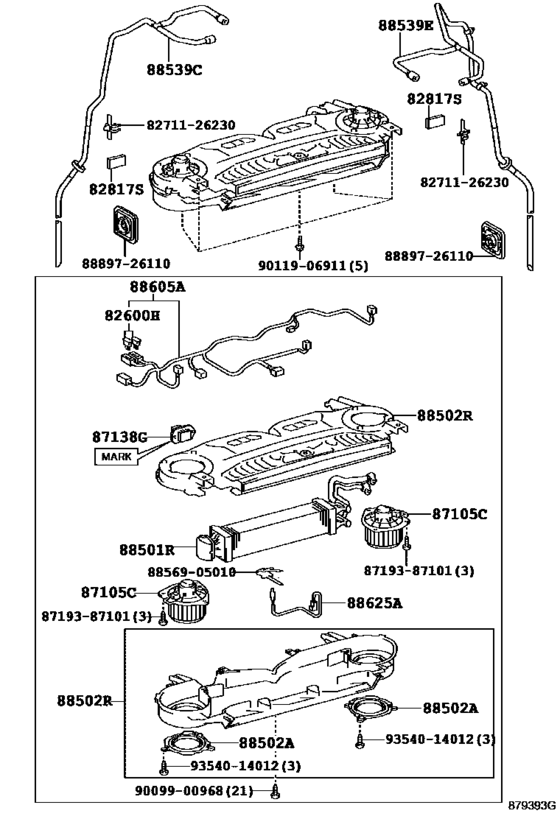

Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF) 32

#	OEM	Part name
82600	90982-09009	Fusible Link
87105	87103-26080	Fan Sub-Assy, Blower, Rear
87105	87103-26081	Fan Sub-Assy, Blower, Rear
87105	87103-26090	Fan Sub-Assy, Blower, Rear
87105	87103-26091	Fan Sub-Assy, Blower, Rear
87105	87105-26030	Fan Sub-Assy, Blower, Rear
87105	87105-26040	Fan Sub-Assy, Blower, Rear
87138	87138-26200	Resistor, Rear Cooler Blower
87138	87138-48020	Resistor, Rear Cooler Blower
88501	88501-26200	Evaporator Sub-Assy (Rear)
88501	88501-26270	Evaporator Sub-Assy (Rear)
88501	88501-26260	Evaporator Sub-Assy (Rear)
88502	88502-26180	Case Sub-Assy, Cooling Unit
88502	88502-26120	Case Sub-Assy, Cooling Unit
88502	88502-26130	Case Sub-Assy, Cooling Unit
88502	88502-26160	Case Sub-Assy, Cooling Unit
88502	88502-26170	Case Sub-Assy, Cooling Unit
88539	88539-26610	Hose, Cooler Unit Drain, No.2
88539	88539-26611	Hose, Cooler Unit Drain, No.2
88539	88539-26600	Hose, Cooler Unit Drain, No.3
88539	88539-26601	Hose, Cooler Unit Drain, No.3
88605	88605-2F720	Harness Sub-Assy, Cooler Wiring
88605	88605-2F770	Harness Sub-Assy, Cooler Wiring
88625	88625-22250	Thermistor, Cooler, No.1
88625	88620-26020	THERMOSTAT ASSY
8271126230	82711-26230	Wire, Fuse To Fuse(for Combustion Heater)
8719387101	87193-87101	SCREW TAPPING
8856905010	88569-05010	Clamp (for Cooler Relay)
8889726110	88897-26110	Valve, Cooler Magnet
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9011906911	90119-06911	BOLT WWASHER
9354014012	93540-14012	Screw

OEM	Part name	Category
82711-26230	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87103-26080	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87103-26081	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87103-26090	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87103-26091	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87105-26030	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87105-26040	Fan Sub-Assy, Blower, Rear	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87138-26200	Resistor, Rear Cooler Blower	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87138-48020	Resistor, Rear Cooler Blower	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
87193-87101	SCREW TAPPING	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88501-26200	Evaporator Sub-Assy (Rear)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88501-26260	Evaporator Sub-Assy (Rear)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88501-26270	Evaporator Sub-Assy (Rear)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88502-26120	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88502-26130	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88502-26160	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88502-26170	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88502-26180	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88539-26600	Hose, Cooler Unit Drain, No.3	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88539-26601	Hose, Cooler Unit Drain, No.3	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88539-26610	Hose, Cooler Unit Drain, No.2	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88539-26611	Hose, Cooler Unit Drain, No.2	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88569-05010	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88605-2F720	Harness Sub-Assy, Cooler Wiring	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88605-2F770	Harness Sub-Assy, Cooler Wiring	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88620-26020	THERMOSTAT ASSY	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88625-22250	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
88897-26110	Valve, Cooler Magnet	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
90119-06911	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
90982-09009	Fusible Link	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
93540-14012	Screw	Heating & Air Conditioning - Cooler Unit ([11.2006 - ] ﾘﾔ (0611- )KDH211,22#,TRH211,216,22#..HRF,SMRF ; (0704- )TRH200,214,219..SMRF,SR F ; (0709- )KD H20#..SRF ; (0808- )KDH20#,TRH200..HRF)
