Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

← Back to categories

4,297 items

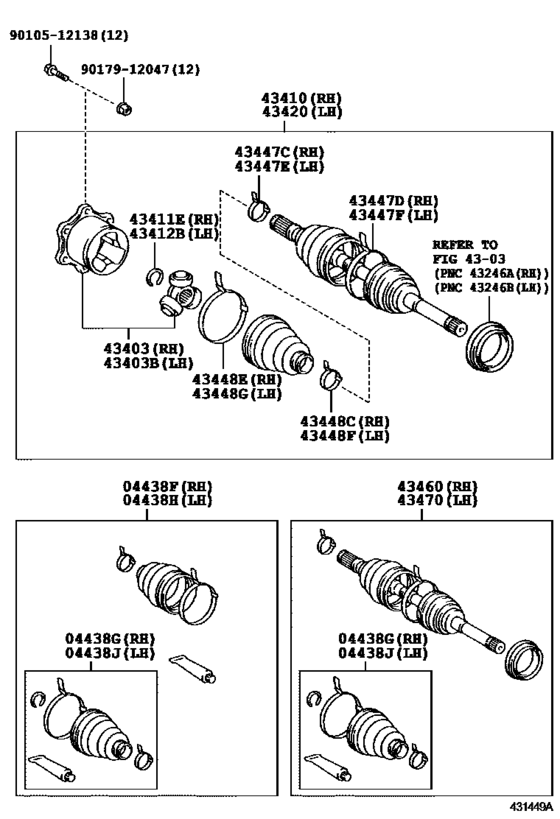

Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229) 19

#	OEM	Part name
4438	04428-25020	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-25023	BOOT KIT, FRONT DRIVE SHAFT
4438	04438-25020	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-25021	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-25010	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04437-25011	Boot Kit, Front Drive Shaft Inboard Joint
4438	04437-25013	BOOT KIT, FR DRIVE
43403	43403-26010	Joint Assy, Front Drive Inboard
43410	43430-26090	Shaft Assy, Front Drive
43410	43430-26092	Shaft Assy, Front Drive
43411	90520-29028	Ring, Snap (For Rear Drive Shaft)
43447	42345-60110	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
43447	90949-01A50	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
43448	90949-01221	Clamp, Rear Drive Shaft Boot
43448	90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43460	43460-29565	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-29726	Shaft Assy, Front Drive Outboard Joint, Rh
9010512138	90105-12138	Bolt
9017912047	90179-12047	Nut(For Front Stabilizer Link)

OEM	Part name	Category
04427-25021	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04427-25023	BOOT KIT, FRONT DRIVE SHAFT	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04428-25020	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04437-25011	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04437-25013	BOOT KIT, FR DRIVE	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04438-25010	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
04438-25020	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
42345-60110	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43403-26010	Joint Assy, Front Drive Inboard	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43430-26090	Shaft Assy, Front Drive	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43430-26092	Shaft Assy, Front Drive	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43460-29565	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43460-29726	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-12138	Bolt	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90179-12047	Nut(For Front Stabilizer Link)	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90520-29028	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90949-01221	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90949-01A50	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
