KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

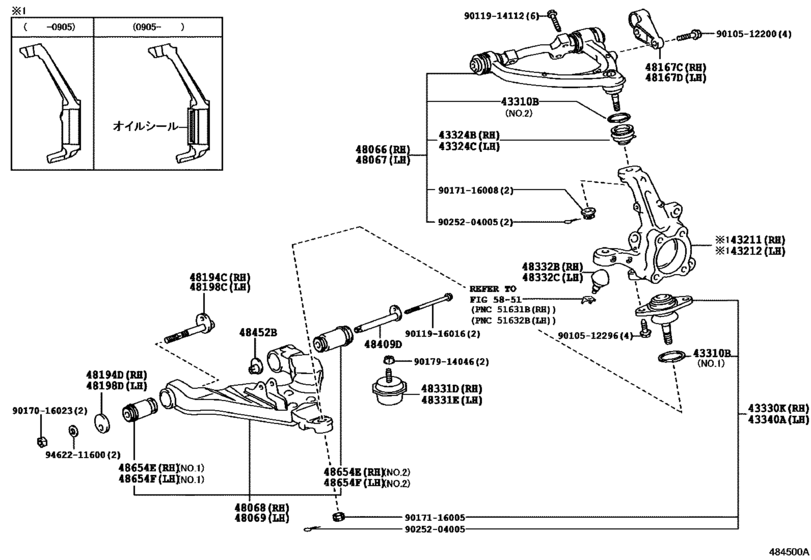

Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229) 33

#	OEM	Part name
43211	43211-26150	Knuckle, Steering, Rh
43211	43201-26070	Knuckle, Steering, Rh
43211	43246-26040	Deflector, Front Wheel Bearing Dust, No.1
43211	43515-26031	Rotor, Skid Control, Front
43212	43212-26120	Knuckle, Steering, Lh
43212	43202-26070	Knuckle, Steering, Lh
43310	90522-50001	Ring, Set (For Dust Cover)
43310	90580-10001	Ring, Set (For Dust Cover)
43324	43324-26050	Cover, Front Upper Ball Joint Dust
43330	43330-29575	Joint Assy, Lower Ball, Front
48066	48066-29235	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-29235	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-26170	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-26170	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48106-25020	Arm, Torque
48194	48190-25010	Cam Assy, Camber Adjust
48194	48198-25010	Cam, Front Suspension Camber Adjust, No.2
48331	48331-25050	Bumper, Front Spring, No.1
48332	48332-35020	Bumper, Front Spring, No.2
48409	48409-25020	Cam Sub-Assy, Front Suspension Toe Adjust
48452	48452-25010	Plate, Front Suspension Toe Adjust, No.2
48654	48061-25010	Bush, Lower Arm
48654	48061-26060	Bush, Front Lower Arm, No.1
9010512200	90105-12200	Bolt(For Torque Arm Setting)
9010512296	90105-12296	New Genuine Part
9011914112	90119-14112	BOLT WWASHER
9011916016	90119-16016	Bolt(For Front Suspension Lower Arm No.2)
9017016023	90170-16023	NUT
9017116005	90171-16005	Nut, Castle(For Tie Rod End)
9017116008	90171-16008	Nut, Castle (For Front Lower Ball Joint)
9017914046	90179-14046	Nut
9025204005	90252-04005	PIN COTTER
9462211600	94622-11600	WASHER

OEM	Part name	Category
43201-26070	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43202-26070	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43211-26150	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43212-26120	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43246-26040	Deflector, Front Wheel Bearing Dust, No.1	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43324-26050	Cover, Front Upper Ball Joint Dust	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43330-29575	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
43515-26031	Rotor, Skid Control, Front	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48061-25010	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48061-26060	Bush, Front Lower Arm, No.1	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48066-29235	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48067-29235	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48068-26170	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48069-26170	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48106-25020	Arm, Torque	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48190-25010	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48198-25010	Cam, Front Suspension Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48331-25050	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48332-35020	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48409-25020	Cam Sub-Assy, Front Suspension Toe Adjust	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
48452-25010	Plate, Front Suspension Toe Adjust, No.2	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-12200	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90105-12296	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90119-14112	BOLT WWASHER	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90119-16016	Bolt(For Front Suspension Lower Arm No.2)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90170-16023	NUT	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90171-16005	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90171-16008	Nut, Castle (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90179-14046	Nut	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90252-04005	PIN COTTER	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90522-50001	Ring, Set (For Dust Cover)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
90580-10001	Ring, Set (For Dust Cover)	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)
94622-11600	WASHER	Front Axle Arm & Steering Knuckle ([08.2004 - ] (0408- )KDH205,206,225,227,TRH216,219,226,228 ,229)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 220
Collected: 2026-08-03
