Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories
KDH227 ×

← Back to categories

4,297 items

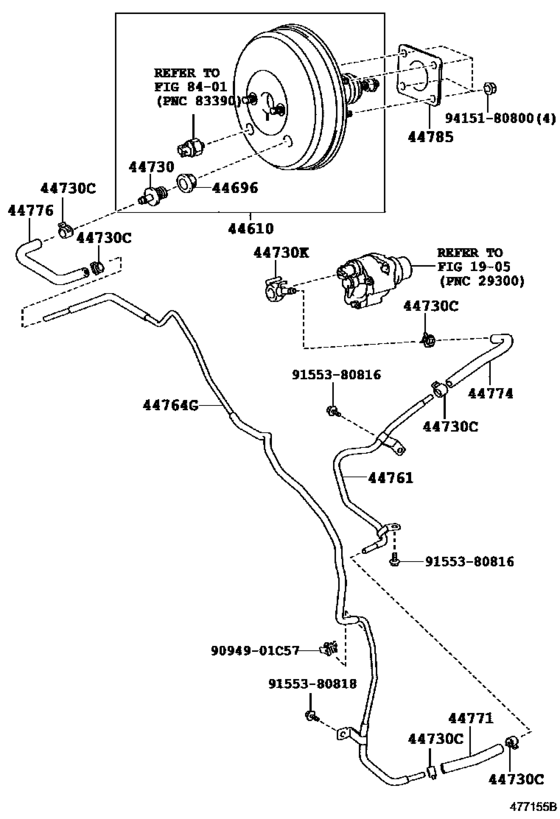

Brake Booster & Vacuum Tube ([08.2004 - 08.2006] (0408-0608)KDH20#,22#) 20
#OEMPart name
44610 44610-26700 Booster Assy, Brake
44610 44610-26701 Booster Assy, Brake
44730 44730-28030 Valve Assy, Vacuum Check(For Brake)
44730 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44730 90405-09175 Union, Vacuum Hose(For Manifold Side)
44761 44761-26381 Tube, Intake Manifold Or Vacuum Pump To Connector
44761 44761-26420 Tube, Intake Manifold Or Vacuum Pump To Connector
44764 44764-26110 Tube, Connector To Brake Booster
44764 44764-26160 Tube, Connector To Brake Booster
44764 44764-26161 Tube, Connector To Brake Booster
44771 44770-26010 Hose, Vacuum Tube Connector
44771 44771-26150 Hose, Vacuum Tube Connector
44771 95446-09160 Hose, Vacuum, No.1
44774 44774-26421 Hose, Union To Connector Tube
44776 44776-26040 Hose, Brake Booster
44785 44785-32010 Gasket, Brake Booster
9094901 90949-01C57 New Genuine Part
9155380816 91553-80816 Bolt (For Transmission Control Cable Bracket)
9155380818 91553-80818 BOLT FLANGE
9415180800 94151-80800 Nut (For Transmission Control Cable)
