Search › Model › KDH227

KDH227

Toyota HIACE · 2005 · 4,297 parts · 220 categories

4,297 items

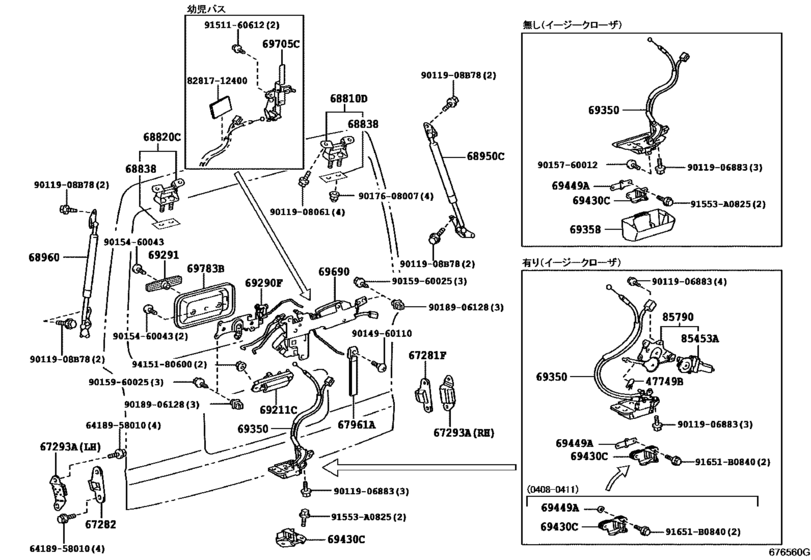

Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF) 73

#	OEM	Part name
47749	47749-26010	Clip, Pin Hold
67281	67281-28010	Stopper, Back Door, Lower
67282	67282-28010	Stopper, Back Door, No.1
67293	67293-28020	Cushion, Back Door Stopper - Right
67293	67294-28010	Cushion, Back Door Stopper - Left
67961	67961-26050-B0	Strap, Back Door Pull
68810	68810-26010	Hinge Assy, Back Door, Rh
68810	68810-26011	Hinge Assy, Back Door, Rh
68820	68820-26010	Hinge Assy, Back Door, Lh
68820	68820-26011	Hinge Assy, Back Door, Lh
68838	68838-26030	Pad, Back Door Hinge, No.1
68950	68950-26150	Stay Assy, Back Door, Rh
68950	68950-26157	Stay Assy, Back Door, Rh
68950	68950-26151	Stay Assy, Back Door, Rh
68950	68950-26152	Stay Assy, Back Door, Rh
68950	68950-26160	Stay Assy, Back Door, Rh
68950	68950-26167	Stay Assy, Back Door, Rh
68950	68950-26161	Stay Assy, Back Door, Rh
68950	68950-26162	Stay Assy, Back Door, Rh
68950	68950-26030	Stay Assy, Back Door, Rh
68950	68950-26037	Stay Assy, Back Door, Rh
68950	68950-26031	Stay Assy, Back Door, Rh
68950	68950-26032	Stay Assy, Back Door, Rh
68950	68950-26040	Stay Assy, Back Door, Rh
68950	68950-26047	Stay Assy, Back Door, Rh
68950	68950-26041	Stay Assy, Back Door, Rh
68950	68950-26042	Stay Assy, Back Door, Rh
68960	68960-26150	Stay Assy, Back Door, Lh
68960	68960-26157	Stay Assy, Back Door, Lh
68960	68960-26151	Stay Assy, Back Door, Lh
68960	68960-26152	Stay Assy, Back Door, Lh
68960	68960-26160	Stay Assy, Back Door, Lh
68960	68960-26167	Stay Assy, Back Door, Lh
68960	68960-26161	Stay Assy, Back Door, Lh
68960	68960-26162	Stay Assy, Back Door, Lh
68960	68960-26030	Stay Assy, Back Door, Lh
68960	68960-26037	Stay Assy, Back Door, Lh
68960	68960-26031	Stay Assy, Back Door, Lh
68960	68960-26032	Stay Assy, Back Door, Lh
68960	68960-26040	Stay Assy, Back Door, Lh
68960	68960-26047	Stay Assy, Back Door, Lh
68960	68960-26041	Stay Assy, Back Door, Lh
68960	68960-26042	Stay Assy, Back Door, Lh
69211	69023-26040	Handle, Back Door Outside
69290	69290-26040-B0	Handle Assy, Back Door Inside
69291	69291-95J00-B5	Handle Assy, Back Door Inside
69350	69350-26140	Lock Assy, Back Door
69350	69350-26120	Lock Assy, Back Door
69350	69350-26122	Lock Assy, Back Door
69430	69430-26020	Striker Assy, Back Door Lock
69430	69430-95J00	Striker Assy, Back Door Lock
69449	69449-26010	Shim, Back Door Lock Striker
69449	69449-26020	Shim, Back Door Lock Striker
69449	69449-26030	Shim, Back Door Lock Striker
69449	69449-95J00	Shim, Back Door Lock Striker
69690	69690-26190	Control Assy, Back Door Remote
85453	85453-26040	Motor, Door Control
85790	85790-26040	Motor Assy, Back Door Closer
91553	91553-A0825	BOLTFLANGE
91651	91651-B0840	New Genuine Part
9011908	90119-08B78	BOLT, W/WASHER
6418958010	64189-58010	Clamp, Back Panel Silencer
8281712400	82817-12400	Protector, Wiring Harness, No.1
9011906883	90119-06883	New Genuine Part
9011908061	90119-08061	BOLT
9014960110	90149-60110	SCREW
9015460043	90154-60043	SCREW CROSSRECESS
9015760012	90157-60012	New Genuine Part
9015960025	90159-60025	SCREW W-WASHER
9017608007	90176-08007	Nut, Cap(For Cylinder Head Cover)
9018906128	90189-06128	GROMMET SCREW
9151160612	91511-60612	BOLT
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
47749-26010	Clip, Pin Hold	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
64189-58010	Clamp, Back Panel Silencer	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
67281-28010	Stopper, Back Door, Lower	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
67282-28010	Stopper, Back Door, No.1	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
67293-28020	Cushion, Back Door Stopper - Right	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
67294-28010	Cushion, Back Door Stopper - Left	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
67961-26050-B0	Strap, Back Door Pull	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68810-26010	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68810-26011	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68820-26010	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68820-26011	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68838-26030	Pad, Back Door Hinge, No.1	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26030	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26031	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26032	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26037	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26040	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26041	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26042	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26047	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26150	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26151	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26152	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26157	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26160	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26161	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26162	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68950-26167	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26030	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26031	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26032	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26037	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26040	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26041	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26042	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26047	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26150	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26151	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26152	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26157	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26160	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26161	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26162	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
68960-26167	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69023-26040	Handle, Back Door Outside	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69290-26040-B0	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69291-95J00-B5	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69350-26120	Lock Assy, Back Door	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69350-26122	Lock Assy, Back Door	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69350-26140	Lock Assy, Back Door	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69430-26020	Striker Assy, Back Door Lock	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69430-95J00	Striker Assy, Back Door Lock	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69449-26010	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69449-26020	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69449-26030	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69449-95J00	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
69690-26190	Control Assy, Back Door Remote	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
82817-12400	Protector, Wiring Harness, No.1	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
85453-26040	Motor, Door Control	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
85790-26040	Motor Assy, Back Door Closer	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90119-06883	New Genuine Part	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90119-08061	BOLT	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90119-08B78	BOLT, W/WASHER	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90149-60110	SCREW	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90154-60043	SCREW CROSSRECESS	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90157-60012	New Genuine Part	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90159-60025	SCREW W-WASHER	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90176-08007	Nut, Cap(For Cylinder Head Cover)	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
90189-06128	GROMMET SCREW	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
91511-60612	BOLT	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
91553-A0825	BOLTFLANGE	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
91651-B0840	New Genuine Part	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Back Door Lock & Hinge ([08.2004 - ] (0408- )HRF,SMRF,SRF)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 220
Collected: 2026-08-03
