Search › Model › KDH227
KDH227

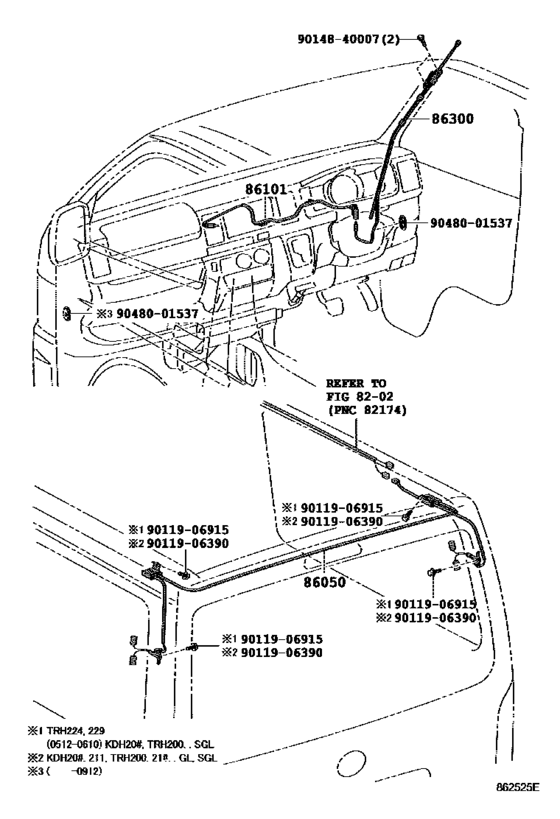

Antenna ([12.2005 - ] (0512- )) 7
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-26150 | Cord Sub-Assy, Antenna |
| 86300 | 86300-26130 | Antenna Assy, W/holder |
| 86300 | 86300-26150 | Antenna Assy, W/holder |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9014840007 | 90148-40007 | SCREW, HEXALOBULAR |
| 9048001537 | 90480-01537 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 86101-26150 | Cord Sub-Assy, Antenna | Antenna ([12.2005 - ] (0512- )) |
| 86300-26130 | Antenna Assy, W/holder | Antenna ([12.2005 - ] (0512- )) |
| 86300-26150 | Antenna Assy, W/holder | Antenna ([12.2005 - ] (0512- )) |
| 90119-06390 | BOLT WWASHER | Antenna ([12.2005 - ] (0512- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([12.2005 - ] (0512- )) |
| 90148-40007 | SCREW, HEXALOBULAR | Antenna ([12.2005 - ] (0512- )) |
| 90480-01537 | New Genuine Part | Antenna ([12.2005 - ] (0512- )) |
