Search › Model › KDH225
KDH225

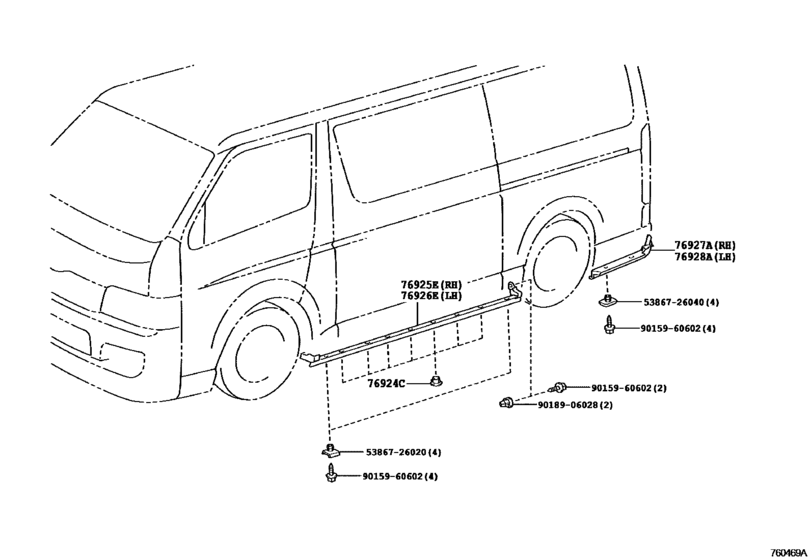

Spoiler & Side Mudguard ([08.2004 - ] (0408- )) 6
| # | OEM | Part name |
|---|---|---|
| 76924 | 76924-26050 | Retainer, Side Mudguard, No.2 |
| 76926 | 76926-26080 | Protector, Side Mudguard, Front Lh |
| 5386726020 | 53867-26020 | Seal, Front Fender To Cowl Side, Lh |
| 5386726040 | 53867-26040 | Seal, Front Fender To Cowl Side, Lh |
| 9015960602 | 90159-60602 | SCREW |
| 9018906028 | 90189-06028 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 53867-26020 | Seal, Front Fender To Cowl Side, Lh | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
| 53867-26040 | Seal, Front Fender To Cowl Side, Lh | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
| 76924-26050 | Retainer, Side Mudguard, No.2 | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
| 76926-26080 | Protector, Side Mudguard, Front Lh | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
| 90159-60602 | SCREW | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
| 90189-06028 | CLIP | Spoiler & Side Mudguard ([08.2004 - ] (0408- )) |
