Search › Model › KDH225

KDH225

Toyota HIACE · 2005 · 4,054 parts · 213 categories

4,054 items

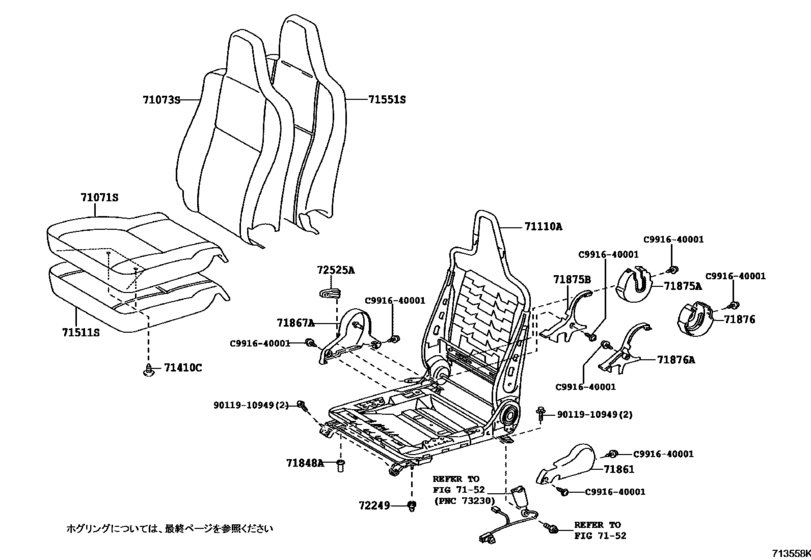

Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX) 25

#	OEM	Part name
71071	71071-26A50-B2	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-26A52-B2	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71027-26040	Cover, Front Seat Back, Rh(For Separate Type)
71073	71027-26040-B3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-26A90-B0	Cover, Front Seat Back, Rh(For Separate Type)
71110	71110-26010	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-26011	Frame Assy, Front Seat W/adjuster, Rh
71410	90467-08186-C0	Clip(For Front Bumper), No.1
71410	90467-08188	Clip, Radiator Support To Frame
71511	71511-26170	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-26270	Pad, Front Seat Back, Rh(For Separate Type)
71848	71848-26010	Cap, Seat Adjuster Cover, Rh
71861	71861-26010-B0	Shield, Front Seat Cushion, Inner Rh
71867	71867-26010-B0	Shield, Front Seat Cushion, Inner No.1 Rh
71875	71875-26010-B0	Cover, Reclining Adjuster Inside, Rh
71875	71875-26010-B1	Cover, Reclining Adjuster Inside, Rh
71875	71875-26020-B0	Cover, Reclining Adjuster Inside, Rh
71875	71875-26020-B1	Cover, Reclining Adjuster Inside, Rh
71876	71876-26010-B0	Cover, Reclining Adjuster Inside, Lh
71876	71876-26010-B1	Cover, Reclining Adjuster Inside, Lh
71876	71876-26030-B0	Cover, Reclining Adjuster Inside, Lh
71876	71876-26030-B1	Cover, Reclining Adjuster Inside, Lh
72249	72249-26030	Guide, Seat Track Locking
72525	72525-26080-B0	Handle, Reclining Adjuster Release, Rh
9011910949	90119-10949	BOLT WWASHER

OEM	Part name	Category
71027-26040	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71027-26040-B3	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71071-26A50-B2	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71071-26A52-B2	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71073-26A90-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71110-26010	Frame Assy, Front Seat W/adjuster, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71110-26011	Frame Assy, Front Seat W/adjuster, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71511-26170	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71551-26270	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71848-26010	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71861-26010-B0	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71867-26010-B0	Shield, Front Seat Cushion, Inner No.1 Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71875-26010-B0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71875-26010-B1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71875-26020-B0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71875-26020-B1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71876-26010-B0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71876-26010-B1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71876-26030-B0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
71876-26030-B1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
72249-26030	Guide, Seat Track Locking	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
72525-26080-B0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
90119-10949	BOLT WWASHER	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
90467-08186-C0	Clip(For Front Bumper), No.1	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
90467-08188	Clip, Radiator Support To Frame	Seat & Seat Track ([08.2004 - ] ｳﾝﾃﾝｾｷ (0408- )03S,06S,09S,10S,15S..DX)
