KDH225

Toyota HIACE · 2005 · 4,054 parts · 213 categories

4,054 items

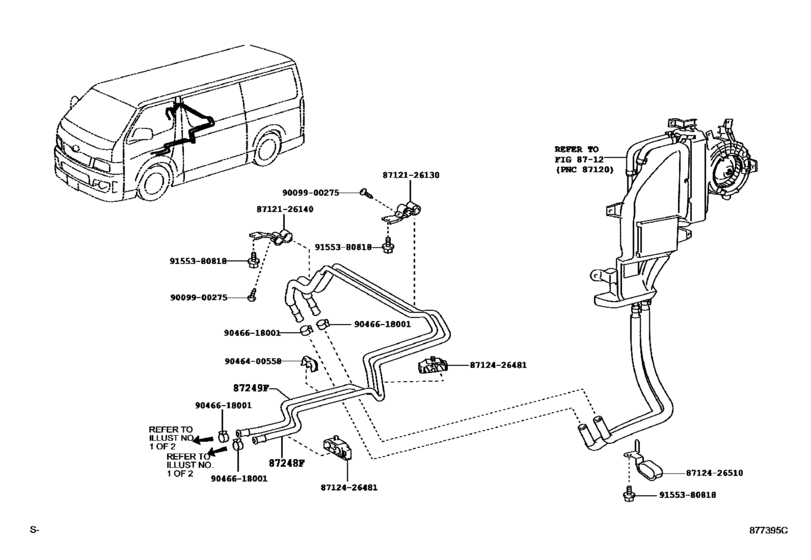

Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216) 10

#	OEM	Part name
87248	87248-26780	Pipe, Heater Water Inlet, F
87249	87248-26790	Pipe, Heater Water Outlet, F
8712126130	87121-26130	Bracket, Heater, Front Rh
8712126140	87121-26140	Bracket, Heater, Front Rh
8712426481	87124-26481	Clamp, Heater
8712426510	87124-26510	Clamp, Heater
9009900275	90099-00275	New Genuine Part
9046400558	90464-00558	Clip Or Clamp (For Heater Water Hose)
9046618001	90466-18001	CLIP HOSE
9155380818	91553-80818	BOLT FLANGE

OEM	Part name	Category
87121-26130	Bracket, Heater, Front Rh	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
87121-26140	Bracket, Heater, Front Rh	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
87124-26481	Clamp, Heater	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
87124-26510	Clamp, Heater	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
87248-26780	Pipe, Heater Water Inlet, F	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
87248-26790	Pipe, Heater Water Outlet, F	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
90099-00275	New Genuine Part	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
90464-00558	Clip Or Clamp (For Heater Water Hose)	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
90466-18001	CLIP HOSE	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
91553-80818	BOLT FLANGE	Heating & Air Conditioning - Water Piping ([01.2005 - 09.2007] ﾘﾔ:ﾄﾘﾑ (0501-0709)KDH220,225 ; (0501- )TRH221,226..H RF ; (0709- )SHRF ; (0709- )K DH211,221,TRH211, 216)
