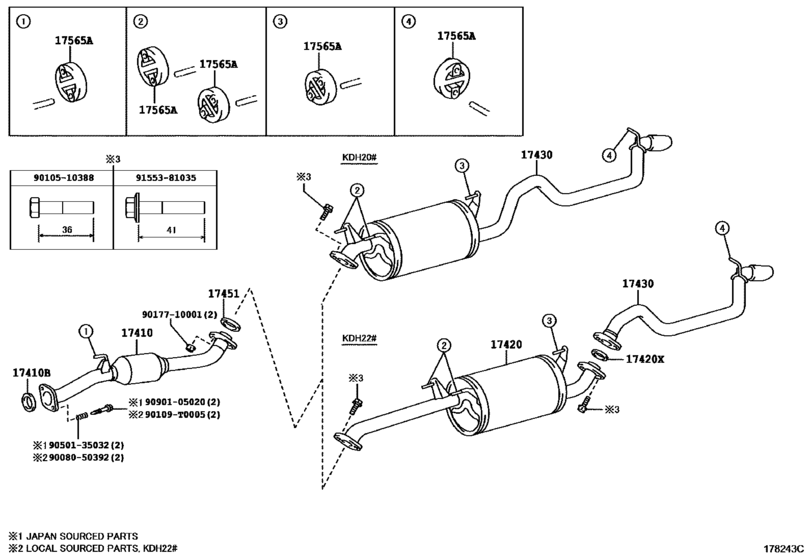

| 17410-30290 |
Pipe Assy, Exhaust, Front |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 17420-30111 |
Pipe Assy, Exhaust, Center |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 17430-30180 |
Pipe Assy, Exhaust, Tail |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 17451-22070 |
Gasket, Exhaust Pipe |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 17565-0P240 |
Support, Exhaust Pipe, No.4 - EXHAUST PIPE, NO.5 |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 17565-28010 |
Support, Exhaust Pipe, No.1 |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90080-50392 |
Spring, Exhaust Pipe |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90105-10388 |
BOLT |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90109-T0005 |
BOLT |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90177-10001 |
NUT LOCK |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90501-35032 |
SPRING COMPRESSION |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90901-05020 |
Bolt Or Ring, Exhaust Pipe Front (For Front) |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 90917-06073 |
Gasket, Exhaust Pipe, Center |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
| 91553-81035 |
BOLT, FLANGE |
Exhaust Pipe ([12.2015 - ] (1312- )1KDFTV..KDH213,221,223..02S,03S,10S,1 2S..ARL,GEN ; (1512- )1KDFTV..KD H203,213,223..11S ,13S,14S,15S..GEN) |
