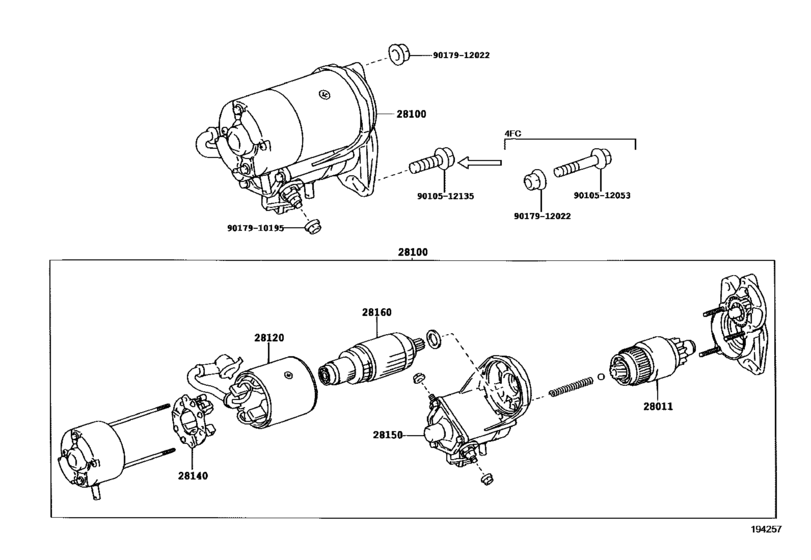

| 28011-30050 |
Clutch Sub-Assy, Starter |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 28100-30051 |
Starter Assy |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 28120-67020 |
Yoke Assy, Starter |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 28140-77090 |
Holder Assy, Starter Brush |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 28150-30050 |
Switch Assy, Magnet Starter |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 28160-54140 |
Armature Assy, Starter |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 90105-12053 |
Bolt (For Rear Differential Carrier) |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 90105-12135 |
Bolt(For Rear Transaxle Case Cover) |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 90179-10195 |
NUT WWASHER |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
| 90179-12022 |
Nut(For Vane Pump Pulley) |
Starter ([12.2013 - ] 12V 2.7KW (1312- )1KDFTV,2KDFTV..KDH200,202,203,222..GE N ; (1312- )1KDFTV..KDH201,221,2 23..02S,12S..5F.. ARL,RUS ; (1501- )1KDFTV..KDH201..05S..4FC) |
