Search › Model › KDH222

KDH222

Toyota HIACE · 2005 · 4,355 parts · 245 categories

4,355 items

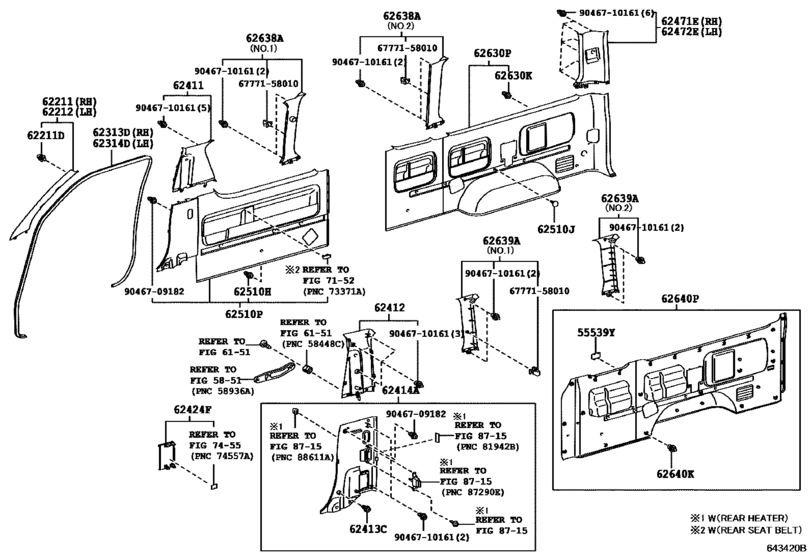

Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL) 29

#	OEM	Part name
55539	55539-28120-B2	Cover, Spare Switch Hole
62211	62210-26052-B0	Garnish, Front Pillar, Rh
62211	67771-28150	Clip(For Front Body Pillar Garnish)
62211	90467-10161	Clip
62212	62220-26032-B0	Garnish, Front Pillar, Lh
62313	62313-26010-C0	Trim, Front Door Opening, Rh
62314	62314-26010-C0	Trim, Front Door Opening, Lh
62411	62410-26110-B0	Garnish, Center Pillar, Rh
62412	62420-26110-B0	Garnish, Center Pillar, Lh
62413	75867-33030	Clip (For Center Lower Garnish)
62414	62414-26380-B0	Garnish, Center Pillar, Lower Lh
62414	62414-26400-B2	Garnish, Center Pillar, Lower Lh
62424	62424-26031-B0	Cover, Center Pillar Garnish, Lower Lh
62424	62424-26032-B0	Cover, Center Pillar Garnish, Lower Lh
62471	62471-26320-B0	Garnish, Roof Side, Inner Upper Rh
62471	62471-26331-B0	Garnish, Roof Side, Inner Upper Rh
62471	62471-26332-B0	Garnish, Roof Side, Inner Upper Rh
62472	62472-26230-B0	Garnish, Roof Side, Inner Upper Lh
62472	62472-26242-B0	Garnish, Roof Side, Inner Upper Lh
62472	62472-26243-B0	Garnish, Roof Side, Inner Upper Lh
62510	67771-26230-B2	Retainer, Floor Carpet
62510	62510-26700-B2	Trim Assy, Side No.1, Rh
62630	62630-26A90-B3	Panel Assy, Quarter Trim, Rear Rh
62638	62638-26060-B0	Garnish, Quarter Pillar, Rh
62639	62639-26051-B0	Garnish, Quarter Pillar, Lh
62639	62639-26080-B0	Garnish, Quarter Pillar, Lh
62640	62640-26B50-B2	Panel Assy, Quarter Trim, Rear Lh
6777158010	67771-58010	Clip, Front Pillar Garnish
9046709182	90467-09182	Clip(For Rear Door Trim Board)

OEM	Part name	Category
55539-28120-B2	Cover, Spare Switch Hole	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62210-26052-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62220-26032-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62313-26010-C0	Trim, Front Door Opening, Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62314-26010-C0	Trim, Front Door Opening, Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62410-26110-B0	Garnish, Center Pillar, Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62414-26380-B0	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62414-26400-B2	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62420-26110-B0	Garnish, Center Pillar, Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62424-26031-B0	Cover, Center Pillar Garnish, Lower Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62424-26032-B0	Cover, Center Pillar Garnish, Lower Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62471-26320-B0	Garnish, Roof Side, Inner Upper Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62471-26331-B0	Garnish, Roof Side, Inner Upper Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62471-26332-B0	Garnish, Roof Side, Inner Upper Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62472-26230-B0	Garnish, Roof Side, Inner Upper Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62472-26242-B0	Garnish, Roof Side, Inner Upper Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62472-26243-B0	Garnish, Roof Side, Inner Upper Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62510-26700-B2	Trim Assy, Side No.1, Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62630-26A90-B3	Panel Assy, Quarter Trim, Rear Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62638-26060-B0	Garnish, Quarter Pillar, Rh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62639-26051-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62639-26080-B0	Garnish, Quarter Pillar, Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
62640-26B50-B2	Panel Assy, Quarter Trim, Rear Lh	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
67771-26230-B2	Retainer, Floor Carpet	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
67771-28150	Clip(For Front Body Pillar Garnish)	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
67771-58010	Clip, Front Pillar Garnish	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
75867-33030	Clip (For Center Lower Garnish)	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
90467-09182	Clip(For Rear Door Trim Board)	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
90467-10161	Clip	Inside Trim Board ([12.2013 - ] (1312- )KDH222,TRH223..RHD..GL)
