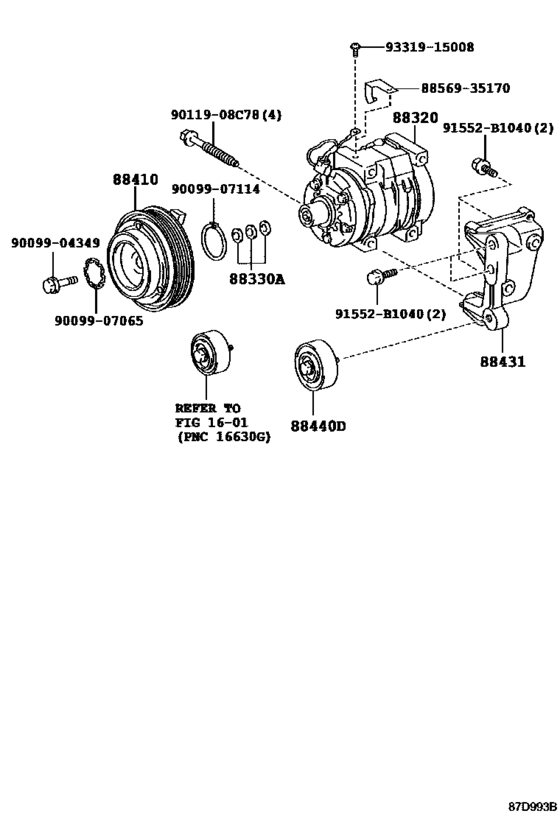

| 88320-2F020 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 88410-28200 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 88431-35250 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 88440-35120 |
Pulley Assy, Idle No.2 |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 88569-35170 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 90119-08C78 |
Bolt, No.2(For Alternator) |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 91552-B1040 |
BOLT FLANGE |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([12.2013 - ] (1312- )KDH223..STD..GEN ; (1312- )KDH223. .ARL,RUS,TH ; (1312- )KDH213,222 ..GL..SA,TH ; (13 12- )KDH203,222..02S,12S,16S..GEN,TH) |
