KDH222

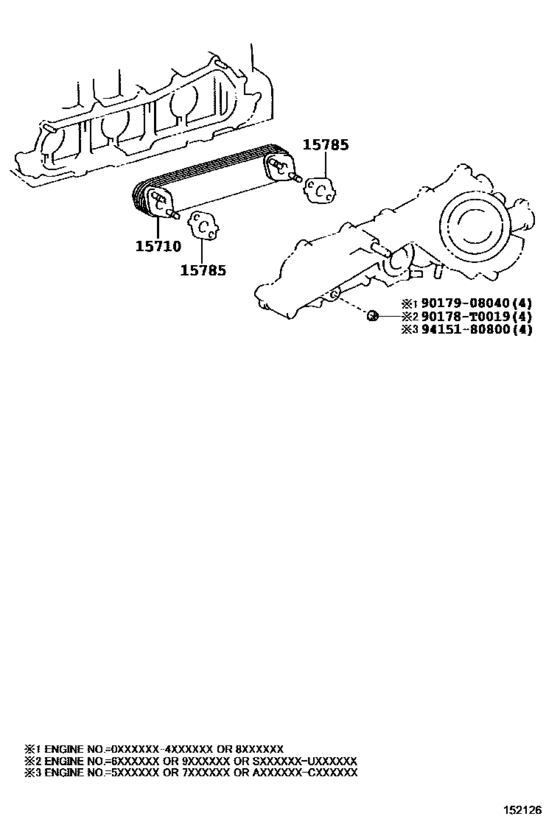

Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) 5
| # | OEM | Part name |
|---|---|---|
| 15710 | 15710-30020 | Cooler Assy, Oil |
| 15785 | 15785-30010 | Gasket, Oil Cooler |
| 90178 | 90178-T0019 | Nut (For Connecting Rod Swivel) |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 15710-30020 | Cooler Assy, Oil | Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) |
| 15785-30010 | Gasket, Oil Cooler | Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) |
| 90178-T0019 | Nut (For Connecting Rod Swivel) | Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) |
| 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) |
| 94151-80800 | Nut (For Transmission Control Cable) | Engine Oil Cooler ([12.2013 - ] (1312- )1KDFTV,2KDFTV) |
