Search › Model › KDH222

KDH222

Toyota HIACE · 2005 · 4,355 parts · 245 categories

4,355 items

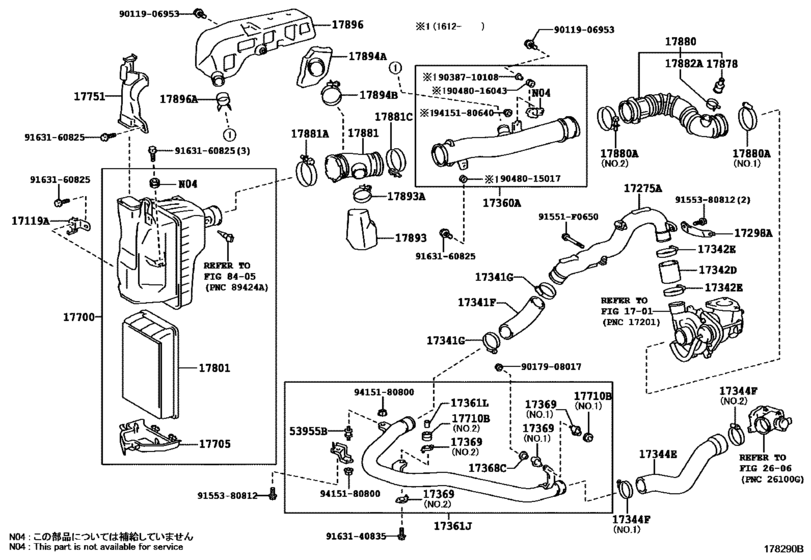

Air Cleaner ([12.2013 - ] (1312- )2KDFTV) 49

#	OEM	Part name
17119	17119-30020	Bracket, Air Cleaner
17275	17275-30020	Elbow, Compressor Outlet
17298	17298-30020	Stay, Compressor Elbow
17341	17341-30071	Hose, Air, No.1
17341	90460-67008	Clamp Or Clip(For Air Hose, No.1)
17342	17342-30050	Hose, Air, No.2
17342	90460-57005	Clamp Or Clip(For Air Hose, No.2)
17344	17344-30011	Hose, Air, No.4
17344	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17360	17360-54101	Tube Assy, Air
17360	17360-54102	Tube Assy, Air
17361	17361-30042	Tube, Air, No.1
17361	90253-13002	Pin, Ring(For Chain Cace)
17368	90389-09025	Bush(For Air Tube Support)
17369	17369-30010	Bracket, Air Tube Support
17369	17369-30020	Bracket, Air Tube Support
17700	17700-30260	Cleaner Assy, Air
17700	17700-30261	CLEANER ASSY, AIR
17705	17705-30180	Cap Sub-Assy, Air Cleaner
17710	90480-16021	Grommet
17710	90480-16039	Grommet
17751	17750-30060	Inlet, Air Cleaner, No.1
17801	17801-30070	Element Sub-Assy, Air Cleaner Filter
17878	17878-30010	Pipe, Intake Air Connector, No.3
17880	17880-30030	Hose Assy, Air Cleaner
17880	96111-10800	Clamp, Hose(For Air Cleaner Duct)
17881	17881-30150	Hose, Air Cleaner, No.1
17881	96111-10900	Clamp, Hose
17882	90467-31003	Clip(For Ventilation Hose)
17893	17893-30060	Resonator, Intake Air
17893	96111-10500	Clamp, Sub Radiator Inlet Hose
17894	17894-30020	Resonator, Intake Air, No.2
17894	96111-10690	Clamp, Hose
17896	17896-75011	Resonator, Intake Air, No.3
17896	17896-75012	Resonator, Intake Air, No.3
17896	90467-37005	Clip(For Water Inlet Hose)
17896	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
53955	53955-95402	Cushion, Air Cleaner Inlet
91551	91551-F0650	New Genuine Part
9011906953	90119-06953	BOLT WWASHER
9017908017	90179-08017	NUT
9038710108	90387-10108	New Genuine Part
9048015017	90480-15017	New Genuine Part
9048016043	90480-16043	New Genuine Part
9155380812	91553-80812	New Genuine Part
9163140835	91631-40835	New Genuine Part
9163160825	91631-60825	BOLT WWASHER
9415180640	94151-80640	NUTFLANGE
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
17119-30020	Bracket, Air Cleaner	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17275-30020	Elbow, Compressor Outlet	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17298-30020	Stay, Compressor Elbow	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17341-30071	Hose, Air, No.1	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17342-30050	Hose, Air, No.2	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17344-30011	Hose, Air, No.4	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17360-54101	Tube Assy, Air	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17360-54102	Tube Assy, Air	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17361-30042	Tube, Air, No.1	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17369-30010	Bracket, Air Tube Support	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17369-30020	Bracket, Air Tube Support	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17700-30260	Cleaner Assy, Air	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17700-30261	CLEANER ASSY, AIR	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17705-30180	Cap Sub-Assy, Air Cleaner	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17750-30060	Inlet, Air Cleaner, No.1	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17801-30070	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17878-30010	Pipe, Intake Air Connector, No.3	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17880-30030	Hose Assy, Air Cleaner	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17881-30150	Hose, Air Cleaner, No.1	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17893-30060	Resonator, Intake Air	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17894-30020	Resonator, Intake Air, No.2	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17896-75011	Resonator, Intake Air, No.3	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
17896-75012	Resonator, Intake Air, No.3	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
53955-95402	Cushion, Air Cleaner Inlet	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90119-06953	BOLT WWASHER	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90179-08017	NUT	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90253-13002	Pin, Ring(For Chain Cace)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90387-10108	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90389-09025	Bush(For Air Tube Support)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90460-57005	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90460-67008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90467-31003	Clip(For Ventilation Hose)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90467-37005	Clip(For Water Inlet Hose)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90480-15017	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90480-16021	Grommet	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90480-16039	Grommet	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
90480-16043	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
91551-F0650	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
91553-80812	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
91631-40835	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
91631-60825	BOLT WWASHER	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
94151-80640	NUTFLANGE	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
94151-80800	Nut (For Transmission Control Cable)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
96111-10500	Clamp, Sub Radiator Inlet Hose	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
96111-10690	Clamp, Hose	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
96111-10800	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
96111-10900	Clamp, Hose	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([12.2013 - ] (1312- )2KDFTV)
