Search › Model › KDH221

KDH221

Toyota HIACE · 2006 · 4,071 parts · 233 categories

4,071 items

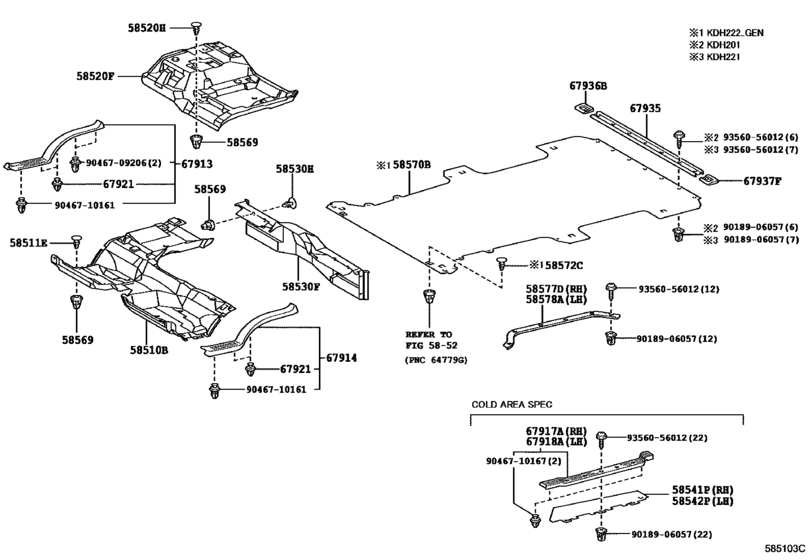

Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S) 23

#	OEM	Part name
58510	58510-26G20-B0	Mat, Front Floor, Front
58510	58510-26G10-B0	Mat, Front Floor, Front
58511	64726-26010-B1	Clip(For Front Floor Mat)
58520	58520-26361-B2	Mat Assy, Engine Cover
58520	58520-26392-B2	Mat Assy, Engine Cover
58520	58520-26551-B2	Mat Assy, Engine Cover
58530	58530-26J70-B1	Mat Assy, Header
58530	58530-26Q50-B0	Mat Assy, Header
58569	64779-26020	Clip(For Front Floor Carpet)
58570	58517-26J10-B2	Mat Assy, Rear Floor
58577	58577-26040-B1	Plate, Rear Floor Mat Support Side, Rh
58578	58578-26040-B1	Plate, Rear Floor Mat Support Side, Lh
67913	67913-26082-B1	Plate, Front Door Scuff, Rh
67914	67914-26062-B1	Plate, Front Door Scuff, Lh
67921	67771-26240	Retainer, Door Trim
67935	67935-26200	Plate, Back Door Scuff
67936	67936-26040-B1	Cover, Back Door Scuff Side, Rh
67937	67937-26040-B1	Cover, Back Door Scuff Side, Lh
9018906057	90189-06057	GROMMET
9046709206	90467-09206	Clip, Front Air Shutter Seal
9046710161	90467-10161	Clip
9046710167	90467-10167	Clip(For Rear Floor Finish Plate)
9356056012	93560-56012	Screw

OEM	Part name	Category
58510-26G10-B0	Mat, Front Floor, Front	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58510-26G20-B0	Mat, Front Floor, Front	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58517-26J10-B2	Mat Assy, Rear Floor	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58520-26361-B2	Mat Assy, Engine Cover	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58520-26392-B2	Mat Assy, Engine Cover	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58520-26551-B2	Mat Assy, Engine Cover	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58530-26J70-B1	Mat Assy, Header	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58530-26Q50-B0	Mat Assy, Header	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58577-26040-B1	Plate, Rear Floor Mat Support Side, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
58578-26040-B1	Plate, Rear Floor Mat Support Side, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
64726-26010-B1	Clip(For Front Floor Mat)	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
64779-26020	Clip(For Front Floor Carpet)	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67771-26240	Retainer, Door Trim	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67913-26082-B1	Plate, Front Door Scuff, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67914-26062-B1	Plate, Front Door Scuff, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67935-26200	Plate, Back Door Scuff	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67936-26040-B1	Cover, Back Door Scuff Side, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
67937-26040-B1	Cover, Back Door Scuff Side, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
90189-06057	GROMMET	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
90467-09206	Clip, Front Air Shutter Seal	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
90467-10161	Clip	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
90467-10167	Clip(For Rear Floor Finish Plate)	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)
93560-56012	Screw	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )KDH201,221..5D..02S,03S)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 233
Collected: 2026-08-03
