KDH221

Toyota HIACE · 2006 · 4,071 parts · 233 categories
KDH221 ×

← Back to categories

4,071 items

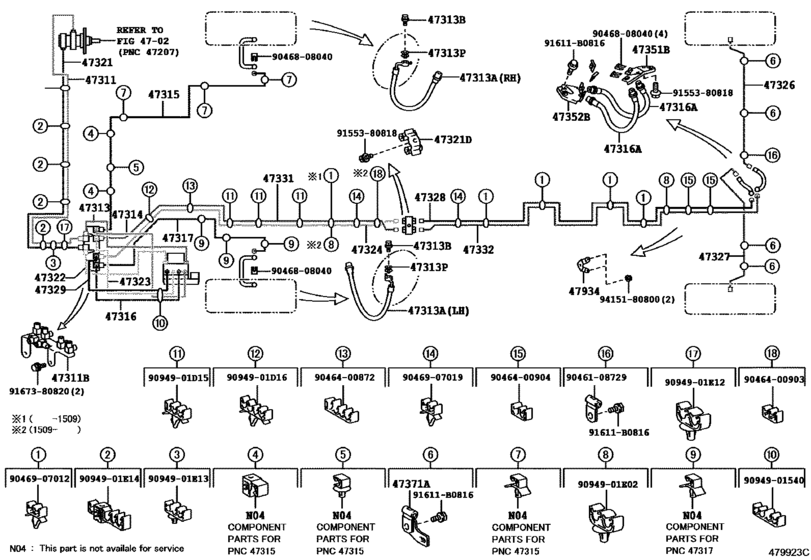

Brake Tube & Clamp ([01.2015 - ] W(VSC) (1501- )KDH221,223,TRH22#..RHD..02S,03S,14S.. ARL,GEN) 66
#OEMPart name
47311 47311-26A10 Tube, Front Brake, No.1
47311 47311-26A70 Tube, Front Brake, No.1
47311 90412-12067 Way, No.1(For Front Brake Tube)
47311 90413-10305 Way, No.1(For Front Brake Tube)
47313 47313-26320 Tube, Front Brake, No.3
47313 47313-26400 Tube, Front Brake, No.3
47313 90947-02F53 Hose, Flexible, No.1(For Front)
47313 90947-02F54 Hose, Flexible, No.1(For Front)
47313 90947-02G74 Hose, Flexible, No.1(For Front)
47313 90947-02H54 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-26370 Tube, Front Brake, No.4
47314 47314-26410 Tube, Front Brake, No.4
47315 47315-26301 Tube, Front Brake, No.5
47315 47315-26340 Tube, Front Brake, No.5
47316 47316-26470 Tube, Front Brake, No.6
47316 47316-26510 Tube, Front Brake, No.6
47316 90947-02F56 Hose, Flexible(For Rear Brake Tube)
47316 90947-02H58 Hose, Flexible(For Rear Brake Tube)
47317 47317-26340 Tube, Front Brake, No.7
47317 47317-26360 Tube, Front Brake, No.7
47321 47321-26760 Tube, Rear Brake, No.1
47321 47321-26820 Tube, Rear Brake, No.1
47321 90412-10166 Way, No.1(For Rear Brake Tube)
47321 90412-10285 Way, No.1(For Front Brake Tube)
47322 47322-26420 Tube, Rear Brake, No.2
47322 47322-26440 Tube, Rear Brake, No.2
47323 47323-26410 Tube, Rear Brake, No.3
47323 47323-26430 Tube, Rear Brake, No.3
47324 47324-26550 Tube, Front Brake, No.9
47324 47324-26570 Tube, Rear Brake, No.4
47324 47324-26571 Tube, Rear Brake, No.4
47326 47326-26480 Tube, Rear Brake, No.6
47326 47326-26540 Tube, Rear Brake, No.6
47327 47327-26330 Tube, Rear Brake, No.7
47327 47327-26390 Tube, Rear Brake, No.7
47328 47328-26160 Tube, Rear Brake, No.8
47328 47328-26210 Tube, Rear Brake, No.8
47329 47329-26480 Tube, Rear Brake, No.9
47331 47331-26250 Tube, Rear Brake, No.10
47331 47331-26251 Tube, Rear Brake, No.10
47332 47332-26200 Tube, Rear Brake, No.11
47351 47351-26210 Bracket, Flexible Hose, No.1
47351 47351-26220 Bracket, Flexible Hose, No.1
47352 47352-26190 Bracket, Flexible Hose, No.2
47371 47371-26200 Clamp, Brake Tube, No.1
47934 47934-26110 Bracket, Load Sensing
91611 91611-B0816 Bolt
9094901 90949-01D15 CLAMP
9094901 90949-01D16 Clamp, Brake Tube, No.3
909490100 90949-01E02 Clamp, Brake Tube, No.7
9046108729 90461-08729 New Genuine Part
9046400872 90464-00872 New Genuine Part
9046400903 90464-00903 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
9046400904 90464-00904 Clamp, Height Control Tube No.9
9046808040 90468-08040 CLIP
9046907012 90469-07012 Clamp Or Clip(For Air Hose, No.5)
9046907019 90469-07019 Clamp, Brake Tube, No.1
9094901540 90949-01540 Clamp, Brake Tube, No.7
9155380818 91553-80818 BOLT FLANGE
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
9415180800 94151-80800 Nut (For Transmission Control Cable)
9094901000000000000 90949-01E12 Clamp, Brake Tube, No.1
9223372036854775807 90949-01E13 New Genuine Part
9223372036854775807 90949-01E14 New Genuine Part
