Search › Model › KDH220

KDH220

Toyota HIACE · 2005 · 3,430 parts · 199 categories

3,430 items

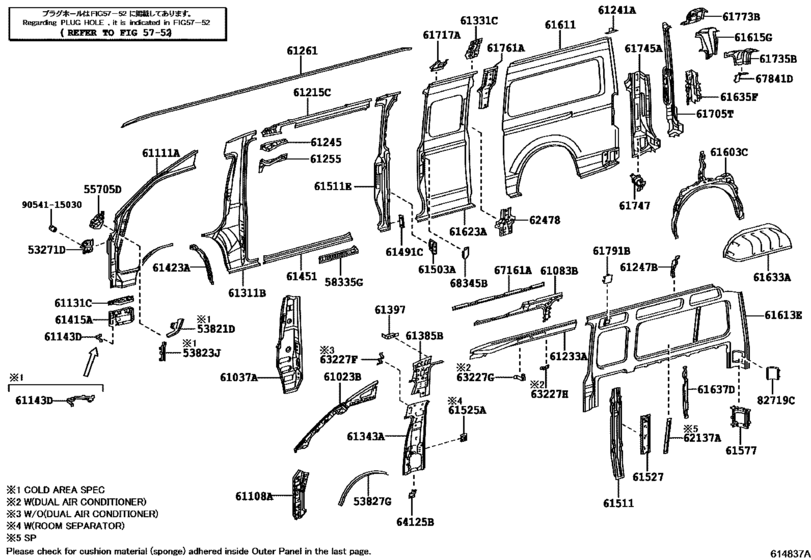

Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D) 63

#	OEM	Part name
53271	53271-26021	Bracket, Headlamp Mounting, Rh
53827	53827-26010	Protector, Front Fender Side Panel, Rh
55705	55705-26080	Panel Sub-Assy, Cowl Top Side, Rh,
58335	58335-26010	Plate, Floor Side, Fr Rh
61023	61023-26200	Pillar Sub-Assy, Front Body, Inner Rh
61037	61037-26030	Reinforcement Sub-Assy, Center Body Pillar, Rh
61037	61037-26080	Reinforcement Sub-Assy, Center Body Pillar, Rh
61083	61083-26070	Brace Sub-Assy, Roof Side Inner, Fr Rh
61108	61108-26010	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61111	61131-26111	Panel, Front Side, Outer Rh
61131	61131-26081	Pillar, Front Body, Outer Rh
61143	61143-26010	Retainer, Front Bumper Side, Rh
61215	61215-26050	Rail, Roof Side, Outer Rear Rh
61233	61233-26340	Rail, Roof Side, Inner No.2 Rh
61241	61241-26030	Gusset, Roof Side Rail, Rear Rh
61245	61245-26040	Reinforcement, Roof Side Rail, Outer Rh
61247	61247-26020	Reinforcement, Roof Side Rail, Inner Rh
61255	61213-26030	Plate, Roof Side Rail, Outer Rh
61261	61261-26061	Channel, Roof Drip, Rh
61311	61311-26080	Pillar, Center Body, Outer Rh
61311	61311-26090	Pillar, Center Body, Outer Rh
61331	61331-26010	Reinforcement, Center Pillar, Upper Outer Rh
61343	61343-26430	Pillar, Center Body, Inner Rh
61343	61343-26440	Pillar, Center Body, Inner Rh
61385	61385-26020	Extension, Center Body Pillar, Inner Rh
61397	61397-26060	Patch, Center Body Pillar, Inner Rh
61415	61415-26021	Panel, Front Step, Under, Rh
61423	61423-26030	Panel, Fender, Inner Lower Rh
61451	61451-26020	Panel, Rocker, Outer Rh
61491	61491-26010	Plate, No.3 Lower Rail, Inner Rh
61503	61503-26030	Reinforce Sub-Assy, Slide Door Lock Striker, Rh
61511	61511-26070	Pillar, Quarter Lock, Rh
61511	61511-26050	Pillar, Quarter Lock, Rh
61527	61527-26030	Reinforcement, Quarter Lock Piller, Lower Rh
61577	61577-26020	Plate, Cab Rear Pillar, Lower Rh
61603	61610-26200	Panel Sub-Assy, Quarter Wheel House, Rh
61611	61611-26470	Panel, Quarter, Rh
61613	61613-26K30	Panel, Quarter, Inner Rh
61613	61613-26D60	Panel, Quarter, Inner Rh
61615	61615-26160	Reinforcement, Rear Body Rear Side Panel, Rh
61623	61623-26070	Extension, Quarter Panel, Outer Rh
61633	61633-26050	Panel, Quarter Wheel House, Inner Rh
61635	61635-26050	Reinforcement, Quarter Panel, Upr Rh
61637	61637-26030	Reinforcement, Quarter, Inner Rh
61705	61705-26290	Frame Sub-Assy, Back Door Opening Side, Rh
61717	61717-26070	Reinforcement, Quarter Panel Extension, Rh
61735	61735-26A70	Extension, Quarter Panel, Inner Rh
61745	61745-26050	Reinforcement, Back Door Opening, Lower Rh
61747	61747-26020	Brace, Roof Side Inner To Wheel House, Rh
61761	61761-26100	Reinforce, Seat Belt Anchor, No.1 Upper Lh
61773	61773-26150	Frame, Back Door Opening Side, Upper Rh
61791	61791-26010-B0	Cover, Roof Side Inner Service Hole
62137	62137-26050	Reinforce, Side Window Panel
62478	62478-26050	Patch, Center Pillar, Rh
63227	63227-26030	Bracket, Roof Headlining, Fr Rh No.4
63227	63227-26050	Bracket, Roof Headlining, Fr Rh No.2
63227	63227-26040	Bracket, Roof Headlining, Fr Rh No.3
64125	64125-26050	Anchor, Pillar Seat Belt
67161	67161-26020	Extension, Slide Door Inside Panel, Upper Rh
67841	67841-26040-B0	Cover, Quarter Service Hole, Rh
68345	68345-26020-B0	Cover, Slide Door Center Rail, Rh
82719	82719-26030-B1	Cover, Wire Hanress Service Hole
9054115030	90541-15030	Cushion, Luggage Door Hinge

OEM	Part name	Category
53271-26021	Bracket, Headlamp Mounting, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
53827-26010	Protector, Front Fender Side Panel, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
55705-26080	Panel Sub-Assy, Cowl Top Side, Rh,	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
58335-26010	Plate, Floor Side, Fr Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61023-26200	Pillar Sub-Assy, Front Body, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61037-26030	Reinforcement Sub-Assy, Center Body Pillar, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61037-26080	Reinforcement Sub-Assy, Center Body Pillar, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61083-26070	Brace Sub-Assy, Roof Side Inner, Fr Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61108-26010	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61131-26081	Pillar, Front Body, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61131-26111	Panel, Front Side, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61143-26010	Retainer, Front Bumper Side, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61213-26030	Plate, Roof Side Rail, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61215-26050	Rail, Roof Side, Outer Rear Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61233-26340	Rail, Roof Side, Inner No.2 Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61241-26030	Gusset, Roof Side Rail, Rear Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61245-26040	Reinforcement, Roof Side Rail, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61247-26020	Reinforcement, Roof Side Rail, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61261-26061	Channel, Roof Drip, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61311-26080	Pillar, Center Body, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61311-26090	Pillar, Center Body, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61331-26010	Reinforcement, Center Pillar, Upper Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61343-26430	Pillar, Center Body, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61343-26440	Pillar, Center Body, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61385-26020	Extension, Center Body Pillar, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61397-26060	Patch, Center Body Pillar, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61415-26021	Panel, Front Step, Under, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61423-26030	Panel, Fender, Inner Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61451-26020	Panel, Rocker, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61491-26010	Plate, No.3 Lower Rail, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61503-26030	Reinforce Sub-Assy, Slide Door Lock Striker, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61511-26050	Pillar, Quarter Lock, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61511-26070	Pillar, Quarter Lock, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61527-26030	Reinforcement, Quarter Lock Piller, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61577-26020	Plate, Cab Rear Pillar, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61610-26200	Panel Sub-Assy, Quarter Wheel House, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61611-26470	Panel, Quarter, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61613-26D60	Panel, Quarter, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61613-26K30	Panel, Quarter, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61615-26160	Reinforcement, Rear Body Rear Side Panel, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61623-26070	Extension, Quarter Panel, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61633-26050	Panel, Quarter Wheel House, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61635-26050	Reinforcement, Quarter Panel, Upr Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61637-26030	Reinforcement, Quarter, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61705-26290	Frame Sub-Assy, Back Door Opening Side, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61717-26070	Reinforcement, Quarter Panel Extension, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61735-26A70	Extension, Quarter Panel, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61745-26050	Reinforcement, Back Door Opening, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61747-26020	Brace, Roof Side Inner To Wheel House, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61761-26100	Reinforce, Seat Belt Anchor, No.1 Upper Lh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61773-26150	Frame, Back Door Opening Side, Upper Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
61791-26010-B0	Cover, Roof Side Inner Service Hole	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
62137-26050	Reinforce, Side Window Panel	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
62478-26050	Patch, Center Pillar, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
63227-26030	Bracket, Roof Headlining, Fr Rh No.4	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
63227-26040	Bracket, Roof Headlining, Fr Rh No.3	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
63227-26050	Bracket, Roof Headlining, Fr Rh No.2	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
64125-26050	Anchor, Pillar Seat Belt	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
67161-26020	Extension, Slide Door Inside Panel, Upper Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
67841-26040-B0	Cover, Quarter Service Hole, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
68345-26020-B0	Cover, Slide Door Center Rail, Rh	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
82719-26030-B1	Cover, Wire Hanress Service Hole	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)
90541-15030	Cushion, Luggage Door Hinge	Side Member ([12.2013 - ] RH (1312- )KDH220,221,TRH221..5D)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 199
Collected: 2026-08-03
