Search › Model › KDH213

KDH213

Toyota HIACE · 2013 · 3,648 parts · 213 categories

3,648 items

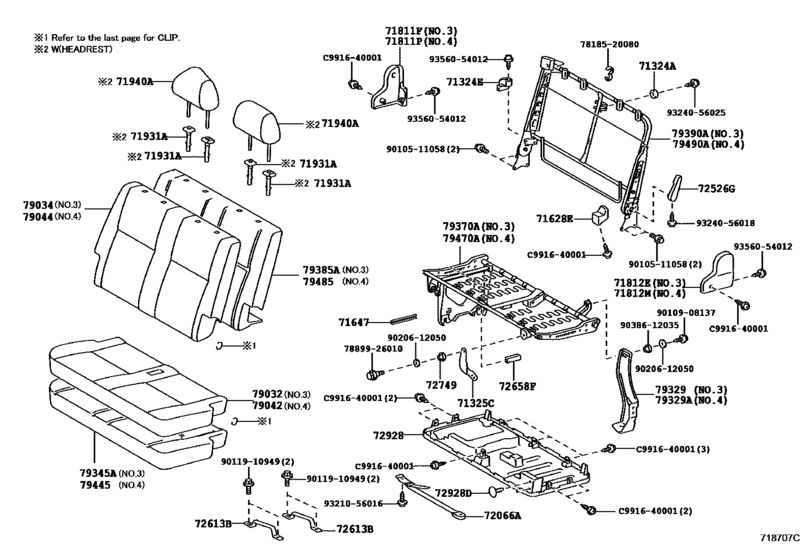

Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN) 35

#	OEM	Part name
71324	71324-26110-B0	Cushion, Rear Seat
71324	79382-60090-B2	Cushion, Rear Seat, Lh
71325	71325-26030	Hinge, Rear Seat Cushion Leg
71628	71628-26040-B1	Spacer, Rear Seat Cushion
71647	71647-26010	Protector, Rear Seat Cushion Edge
71811	71812-26290-B1	Cover, Reclining Adjuster, Rh
71812	71812-26310-B1	Cover, Reclining Adjuster, Lh
71931	71930-52030-B0	Support Assy, Front Seat Headrest
71931	71931-42020-B4	Support Assy, Front Seat Headrest
71940	71940-26530-B0	Headrest Assy, Front Seat
72066	72065-26040-B1	Hook Sub-Assy,rear Seat Cushion Lock,rh
72526	72526-28090-B0	Handle, Reclining Adjuster Release, Lh
72613	72613-26110	Striker, Rear Seat Lock
72658	72658-95701-D0	Knob, Rear Seat Handle
72749	72749-48030	Spacer, Center Seat Hinge
72928	72928-26010-B1	Cover, Rear Seat Cushion Under, Lh
72928	71731-26020-B1	Clip (For Rear Seat Cushion Under Cover)
79032	79022-26142-B6	Cover Sub-Assy, No.4 Seat Cushion, Lh
79034	79024-26033-B8	Cover Sub-Assy, No.3 Seat Back, Lh
79329	79329-26030	Bracket, No.3 Seat Leg, Rr Lh
79345	79245-26020	Pad, No.4 Seat Cushion, Lh
79370	71056-26020	Spring Assy, No.4 Seat Cushion, Lh
79385	79285-26020	Pad, No.3 Seat Back, Lh
79390	79390-26040	Spring Assy, No.3 Seat Back, Lh
7818520080	78185-20080	Clamp, Accelerator Control Cable, No.2
7889926010	78899-26010	Bolt, Front Seat
9010511058	90105-11058	BOLT FLANGE
9010908137	90109-08137	BOLTFOLDING SEAT
9011910949	90119-10949	BOLT WWASHER
9020612050	90206-12050	WASHER
9038612035	90386-12035	BUSH
9321056016	93210-56016	New Genuine Part
9324056018	93240-56018	New Genuine Part
9324056025	93240-56025	SCREW
9356054012	93560-54012	Screw

OEM	Part name	Category
71056-26020	Spring Assy, No.4 Seat Cushion, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71324-26110-B0	Cushion, Rear Seat	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71325-26030	Hinge, Rear Seat Cushion Leg	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71628-26040-B1	Spacer, Rear Seat Cushion	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71647-26010	Protector, Rear Seat Cushion Edge	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71731-26020-B1	Clip (For Rear Seat Cushion Under Cover)	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71812-26290-B1	Cover, Reclining Adjuster, Rh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71812-26310-B1	Cover, Reclining Adjuster, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71930-52030-B0	Support Assy, Front Seat Headrest	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71931-42020-B4	Support Assy, Front Seat Headrest	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
71940-26530-B0	Headrest Assy, Front Seat	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72065-26040-B1	Hook Sub-Assy,rear Seat Cushion Lock,rh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72526-28090-B0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72613-26110	Striker, Rear Seat Lock	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72658-95701-D0	Knob, Rear Seat Handle	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72749-48030	Spacer, Center Seat Hinge	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
72928-26010-B1	Cover, Rear Seat Cushion Under, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
78185-20080	Clamp, Accelerator Control Cable, No.2	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
78899-26010	Bolt, Front Seat	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79022-26142-B6	Cover Sub-Assy, No.4 Seat Cushion, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79024-26033-B8	Cover Sub-Assy, No.3 Seat Back, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79245-26020	Pad, No.4 Seat Cushion, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79285-26020	Pad, No.3 Seat Back, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79329-26030	Bracket, No.3 Seat Leg, Rr Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79382-60090-B2	Cushion, Rear Seat, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
79390-26040	Spring Assy, No.3 Seat Back, Lh	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
90105-11058	BOLT FLANGE	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
90109-08137	BOLTFOLDING SEAT	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
90119-10949	BOLT WWASHER	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
90206-12050	WASHER	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
90386-12035	BUSH	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
93210-56016	New Genuine Part	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
93240-56018	New Genuine Part	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
93240-56025	SCREW	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)
93560-54012	Screw	Seat & Seat Track ([12.2015 - ] REAR SPACE UP SEAT(LH) (1312- )LHD..15S ; (1312- )KDH212..5F..GL. .GEN ; (1512- )KDH213,223..10S,1 1S,12S,13S..GEN)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 213
Collected: 2026-08-03
