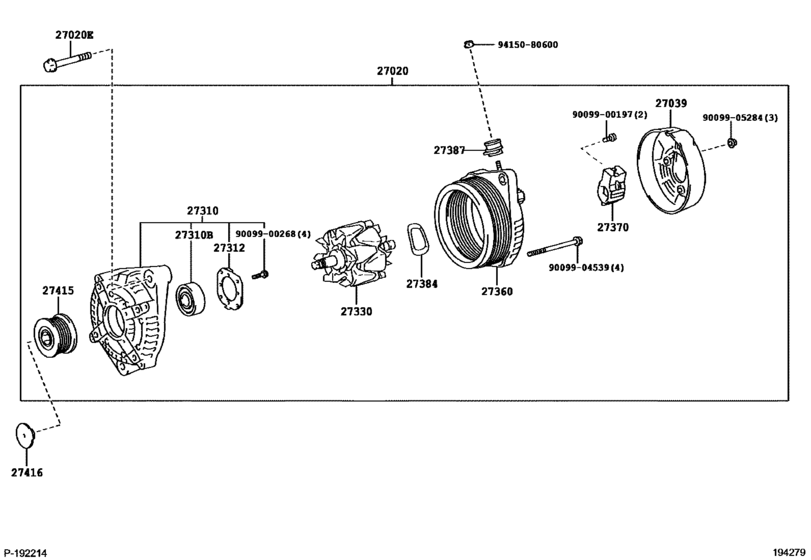

| 27039-50430 |
Cover, Alternator Rear End |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27060-30210 |
Alternator Assy |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27060-30220 |
Alternator Assy |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27310-30080 |
Frame Assy, Drive End, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27330-30070 |
Rotor Assy, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27330-33090 |
Rotor Assy, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27360-30220 |
Coil Assy, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27360-30230 |
Coil Assy, Alternator |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27370-58460 |
Holder Assy, Alternator Brush |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27384-50030 |
Holder, Alternator Brush, A |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27415-30010 |
Pulley, Alternator W/clutch |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27416-30010 |
Cap, Alternator Pulley |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 27416-30020 |
Cap, Alternator Pulley |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90099-00197 |
Screw |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90099-04539 |
BOLT |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90099-05284 |
NUT |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90105-10092 |
Bolt(For Alternator) |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 90105-T0074 |
Bolt(For Alternator) |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
| 94150-80600 |
NUT FLANGE |
Alternator ([12.2013 - ] 12V 100A, 130A, 150A (1312- )1KDFTV,2KDFTV) |
