KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

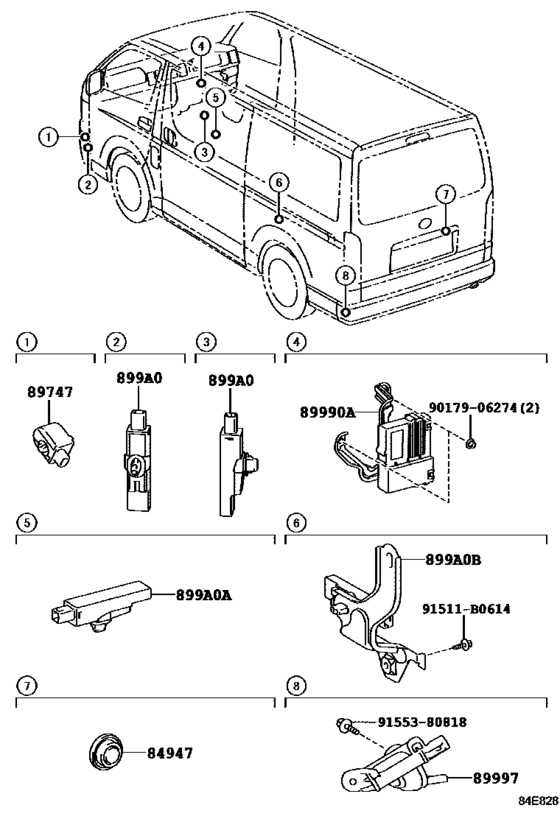

Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU) 8

#	OEM	Part name
84947	84947-26010	Cover, Door Electrical Key Switch
89747	89747-52010	Buzzer, Wireless Door Lock
89990	89990-26020	Computer Assy, Smart Key
89990	89990-26021	Computer Assy, Smart Key
89997	89997-26010	Antenna, Electrical Key
91511	91511-B0614	BOLT, FLANGE
9017906274	90179-06274	Nut
9155380818	91553-80818	BOLT FLANGE

OEM	Part name	Category
84947-26010	Cover, Door Electrical Key Switch	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
89747-52010	Buzzer, Wireless Door Lock	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
89990-26020	Computer Assy, Smart Key	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
89990-26021	Computer Assy, Smart Key	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
89997-26010	Antenna, Electrical Key	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
90179-06274	Nut	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
91511-B0614	BOLT, FLANGE	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)
91553-80818	BOLT FLANGE	Wireless Door Lock ([12.2013 - ] W(SMART) (1312- )GC,GL,SGL..CBU)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
