KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

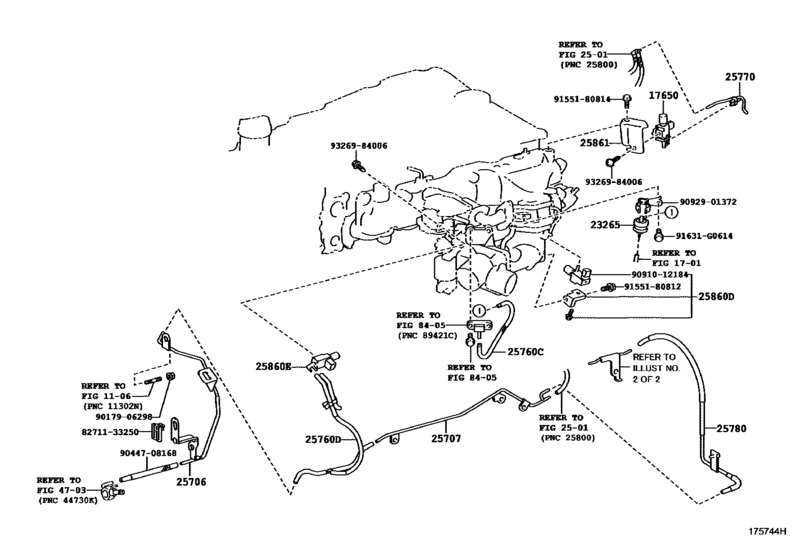

Vacuum Piping ([09.2007 - 08.2009] (0709-0908)1KDFTV) 23
#OEMPart name
17650 25860-30070 Valve Assy, Vacuum Switching
23265 90917-11038 Filter, Gas, No.1
25706 25706-30040 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-30041 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-30050 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-30030 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-30040 Pipe Sub-Assy, Vacuum Transmitting, No.2
25760 25760-30110 Hose Assy, Vacuum Transmitting, No.3
25760 25760-30140 Hose Assy, Vacuum Transmitting, No.4
25770 25770-30050 Hose Assy, Vacuum Transmitting, No.2
25780 25780-30040 Hose Assy, Vacuum Transmitting, No.3
25860 25860-30130 Valve Assy, Vacuum Switching, No.2
25860 25860-30160 Valve Assy, Vacuum Switching
25861 25861-30080 Bracket, Vacuum Switching Valve
91631 91631-G0614 BOT WWASHER
8271133250 82711-33250 Wire, Fuse To Fuse(for Combustion Heater)
9017906298 90179-06298 NUT
9044708168 90447-08168 New Genuine Part
9091012184 90910-12184 Valve, Vacuum Switching
9092901372 90929-01372 Bracket
9155180812 91551-80812 BOLT FLANGE
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9326984006 93269-84006 New Genuine Part
