KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

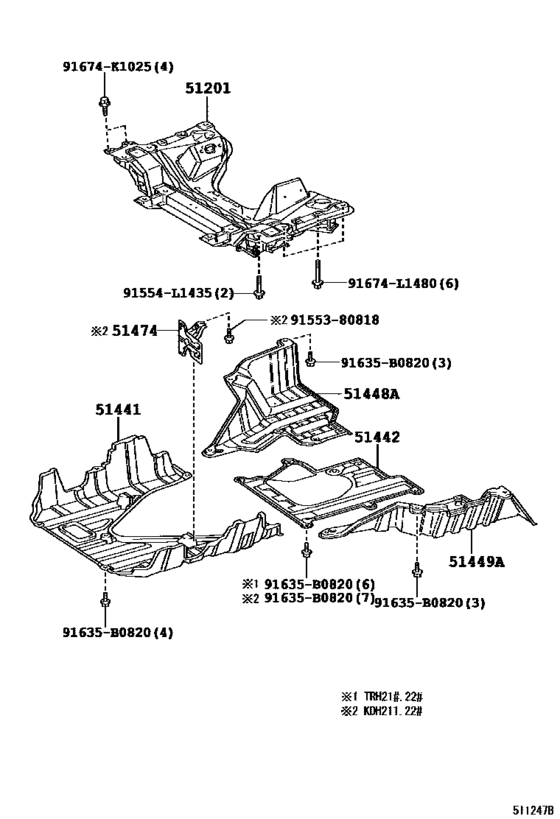

Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224) 16

#	OEM	Part name
51201	51201-26250	Crossmember Sub-Assy, Front Suspension
51201	32907-26052	Tube Sub-Assy, Oil Cooler Outlet, No.2
51201	51201-26360	Crossmember Sub-Assy, Front Suspension
51441	51405-26160	Cover, Engine Under, No.1
51441	51441-26180	Cover, Engine Under, No.1
51442	51442-26150	Cover, Engine Under, No.2
51448	51448-26030	Cover, Engine Side Under, Rh
51448	51408-26070	Cover Sub-Assy, Engine Under, Rh
51449	51044-26010	Cover, Engine Side Under, Lh
51449	51449-26050	Cover, Engine Side Under, Lh
51474	51074-26010	Cover Sub-Assy, Engine Side, Lh
91554	91554-L1435	New Genuine Part
91635	91635-B0820	BOLT WWASHER
91674	91674-K1025	New Genuine Part
91674	91674-L1480	BOLT FLANGE
9155380818	91553-80818	BOLT FLANGE

OEM	Part name	Category
32907-26052	Tube Sub-Assy, Oil Cooler Outlet, No.2	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51044-26010	Cover, Engine Side Under, Lh	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51074-26010	Cover Sub-Assy, Engine Side, Lh	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51201-26250	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51201-26360	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51405-26160	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51408-26070	Cover Sub-Assy, Engine Under, Rh	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51441-26180	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51442-26150	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51448-26030	Cover, Engine Side Under, Rh	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
51449-26050	Cover, Engine Side Under, Lh	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
91553-80818	BOLT FLANGE	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
91554-L1435	New Genuine Part	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
91635-B0820	BOLT WWASHER	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
91674-K1025	New Genuine Part	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
91674-L1480	BOLT FLANGE	Suspension Crossmember & Under Cover ([08.2004 - ] (0408- )KDH211,220,221,222,223,TRH211,214,221 ,223,224)
