Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

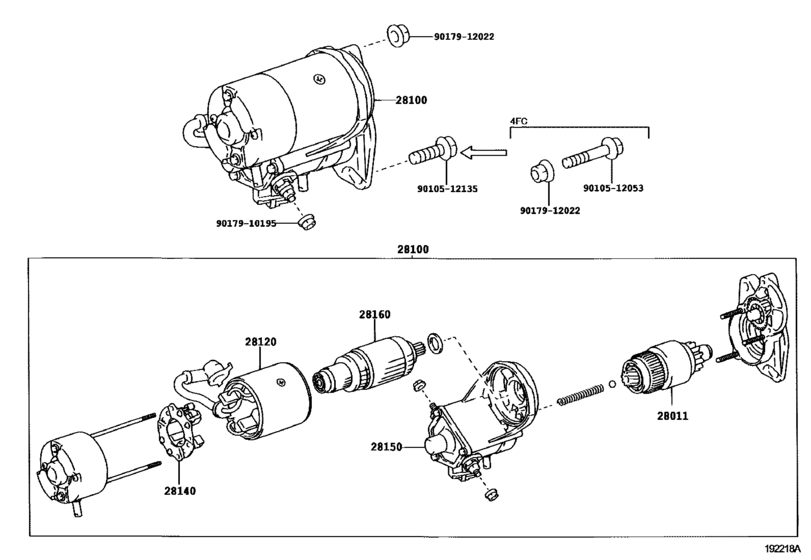

Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV) 24

#	OEM	Part name
28011	28011-30050	Clutch Sub-Assy, Starter
28011	28011-67030	Clutch Sub-Assy, Starter
28100	28100-30050	Starter Assy
28100	28100-30051	Starter Assy
28100	28100-30100	Starter Assy
28100	28100-30101	Starter Assy
28100	28100-67051	Starter Assy
28100	28100-67052	Starter Assy
28120	28120-64040	Yoke Assy, Starter
28120	28120-67020	Yoke Assy, Starter
28120	28120-67090	Yoke Assy, Starter
28140	28140-64040	Holder Assy, Starter Brush
28140	28140-67090	Holder Assy, Starter Brush
28140	28140-77090	Holder Assy, Starter Brush
28150	28150-30050	Switch Assy, Magnet Starter
28150	28150-30070	Switch Assy, Magnet Starter
28150	28150-67050	Switch Assy, Magnet Starter
28160	28160-30100	Armature Assy, Starter
28160	28160-54140	Armature Assy, Starter
28160	28160-64041	Armature Assy, Starter
9010512053	90105-12053	Bolt (For Rear Differential Carrier)
9010512135	90105-12135	Bolt(For Rear Transaxle Case Cover)
9017910195	90179-10195	NUT WWASHER
9017912022	90179-12022	Nut(For Vane Pump Pulley)

OEM	Part name	Category
28011-30050	Clutch Sub-Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28011-67030	Clutch Sub-Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-30050	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-30051	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-30100	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-30101	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-67051	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28100-67052	Starter Assy	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28120-64040	Yoke Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28120-67020	Yoke Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28120-67090	Yoke Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28140-64040	Holder Assy, Starter Brush	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28140-67090	Holder Assy, Starter Brush	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28140-77090	Holder Assy, Starter Brush	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28150-30050	Switch Assy, Magnet Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28150-30070	Switch Assy, Magnet Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28150-67050	Switch Assy, Magnet Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28160-30100	Armature Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28160-54140	Armature Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
28160-64041	Armature Assy, Starter	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
90105-12053	Bolt (For Rear Differential Carrier)	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
90105-12135	Bolt(For Rear Transaxle Case Cover)	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
90179-10195	NUT WWASHER	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)
90179-12022	Nut(For Vane Pump Pulley)	Starter ([08.2004 - ] 12V 2.7KW (0408- )1KDFTV,2KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
