KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

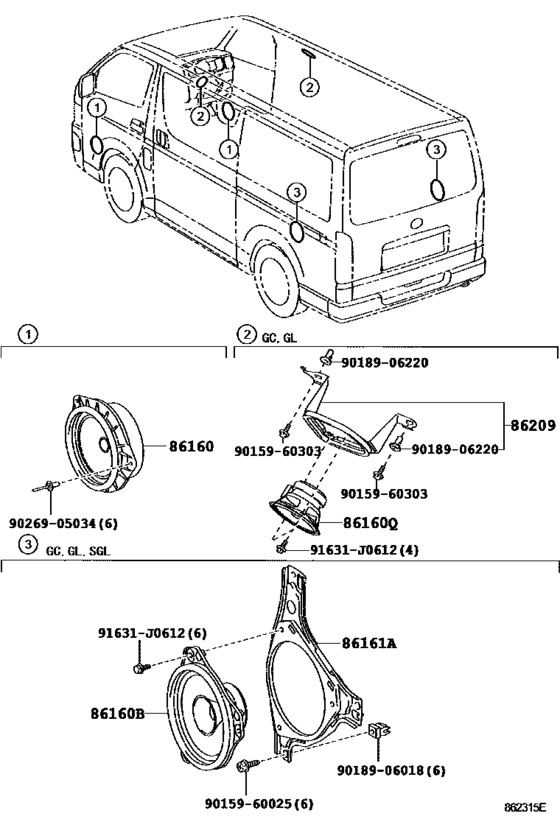

Speaker ([08.2004 - 08.2010] (0408-1008)) 14

#	OEM	Part name
86160	86160-26550	Speaker Assy, Front No.1
86160	86160-26551	SPEAKER ASSY, RADIO
86160	86160-28550	Speaker Assy, Rear
86160	86160-52110	Speaker Assy, Front No.1
86161	86161-26090	Bracket, Speaker, Rear
86161	86161-26091	Bracket, Speaker, Rear
86161	86161-26100	Bracket, Speaker, Rear
86161	86161-26101	Bracket, Speaker, Rear
91631	91631-J0612	BRACKET
9015960025	90159-60025	SCREW W-WASHER
9015960303	90159-60303	SCREW
9018906018	90189-06018	GROMMET
9018906220	90189-06220	GROMMET SCREW
9026905034	90269-05034	RIVET

OEM	Part name	Category
86160-26550	Speaker Assy, Front No.1	Speaker ([08.2004 - 08.2010] (0408-1008))
86160-26551	SPEAKER ASSY, RADIO	Speaker ([08.2004 - 08.2010] (0408-1008))
86160-28550	Speaker Assy, Rear	Speaker ([08.2004 - 08.2010] (0408-1008))
86160-52110	Speaker Assy, Front No.1	Speaker ([08.2004 - 08.2010] (0408-1008))
86161-26090	Bracket, Speaker, Rear	Speaker ([08.2004 - 08.2010] (0408-1008))
86161-26091	Bracket, Speaker, Rear	Speaker ([08.2004 - 08.2010] (0408-1008))
86161-26100	Bracket, Speaker, Rear	Speaker ([08.2004 - 08.2010] (0408-1008))
86161-26101	Bracket, Speaker, Rear	Speaker ([08.2004 - 08.2010] (0408-1008))
90159-60025	SCREW W-WASHER	Speaker ([08.2004 - 08.2010] (0408-1008))
90159-60303	SCREW	Speaker ([08.2004 - 08.2010] (0408-1008))
90189-06018	GROMMET	Speaker ([08.2004 - 08.2010] (0408-1008))
90189-06220	GROMMET SCREW	Speaker ([08.2004 - 08.2010] (0408-1008))
90269-05034	RIVET	Speaker ([08.2004 - 08.2010] (0408-1008))
91631-J0612	BRACKET	Speaker ([08.2004 - 08.2010] (0408-1008))
