| 04483-26130 |
Shackle Kit, Rear Spring |

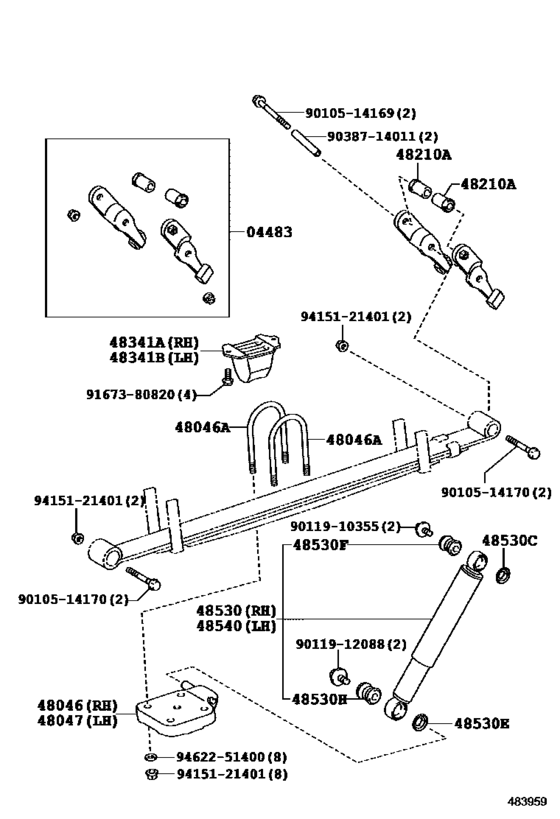

Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 04483-26132 |
SHACKLE KIT RR |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 48046-26130 |
Seat Sub-Assy, Spring U Bolt, Rh |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 48341-26240 |
Bumper, Rear Spring, No.1 |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 48531-80769 |
Absorber Assy, Shock, Rear Rh |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90105-14169 |
BOLT FLANGE |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90105-14170 |
BOLT FLANGE |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90117-14177 |
Bolt, U(For Rear Spring) |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90119-10355 |
Washer, Rear Shock Absorber Cushion, No.2 |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90119-12088 |
BOLT |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90385-16009 |
Cushion, Shock Absorber |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90385-18008 |
Bush(For Rear Spring Shackle Upper) |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90385-19006 |
Cushion, Shock Absorber |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90387-14011 |
COLLAR |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90948-03004 |
Retainer, Cushion, No.1(For Front Shock Absorber) |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 90948-03011 |
Washer, Front Shock Absorber Cushion, No.1 |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 91673-80820 |
Bolt (For Transmission Control Cable Bracket) |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 94151-21401 |
NUT FLANGE |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
| 94622-51400 |
Washer(For Front Suspension Lower Arm No.1 Rh) |
Rear Spring & Shock Absorber ([12.2013 - ] (1312- )KDH201,211 ; (1312- )KDH206..IV5) |
