Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

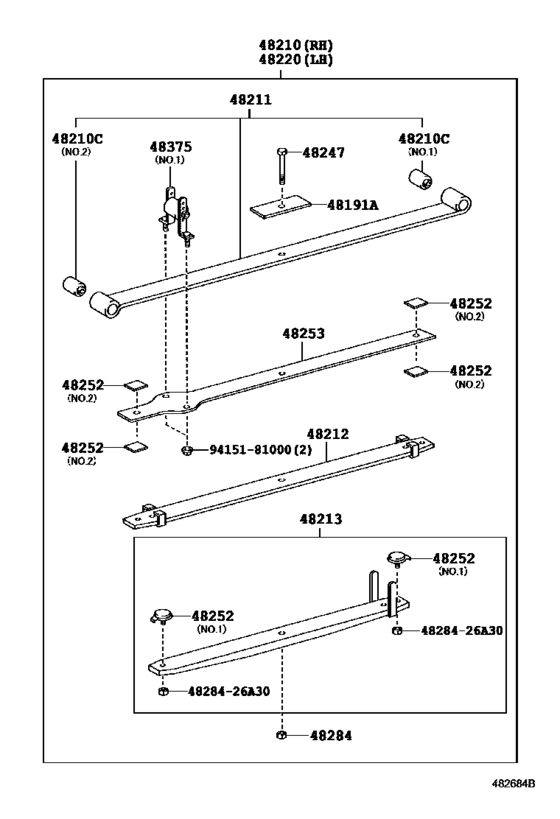

Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL) 20

#	OEM	Part name
48191	48191-34010	Wedge, Caster(For Rear Leaf Spring)
48210	48210-26A11	Spring Assy, Rear Rh
48210	48210-26A12	Spring Assy, Rear Rh
48210	48210-26C41	Spring Assy, Rear Rh
48210	90389-14007	Bush(For Rear Spring Leaf)
48210	90389-14037	Bush(For Rear Spring Leaf)
48211	48201-26A11	Leaf, Rear Spring, No.1
48211	48201-26A12	Leaf, Rear Spring, No.1
48212	48202-26A11	Leaf, Rear Spring, No.2
48212	48202-26A12	Leaf, Rear Spring, No.2
48213	48203-26A11	Leaf, Rear Spring, No.3
48213	48203-26A12	Leaf, Rear Spring, No.3
48247	48247-26A20	Bolt, Rear Spring, Center
48252	48252-26A01	Silencer, Rear Spring
48252	48252-26B00	Silencer, Rear Spring
48252	48252-28170	Silencer, Rear Spring
48253	48253-26B00	Spacer, Rear Spring, No.2
48284	48284-26A30	Nut, Rear Spring Center Bolt
48375	48370-26080	Damper, Leaf Spring Dynamic
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
48191-34010	Wedge, Caster(For Rear Leaf Spring)	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48201-26A11	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48201-26A12	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48202-26A11	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48202-26A12	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48203-26A11	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48203-26A12	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48210-26A11	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48210-26A12	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48210-26C41	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48247-26A20	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48252-26A01	Silencer, Rear Spring	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48252-26B00	Silencer, Rear Spring	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48252-28170	Silencer, Rear Spring	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48253-26B00	Spacer, Rear Spring, No.2	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48284-26A30	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
48370-26080	Damper, Leaf Spring Dynamic	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
90389-14007	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
90389-14037	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)
94151-81000	NUT FLANGE	Rear Spring & Shock Absorber ([09.2007 - ] 3-ﾘｰﾌ (0709-1008)KDH206..DX..CBU ; (0709- )SGL)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
