Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

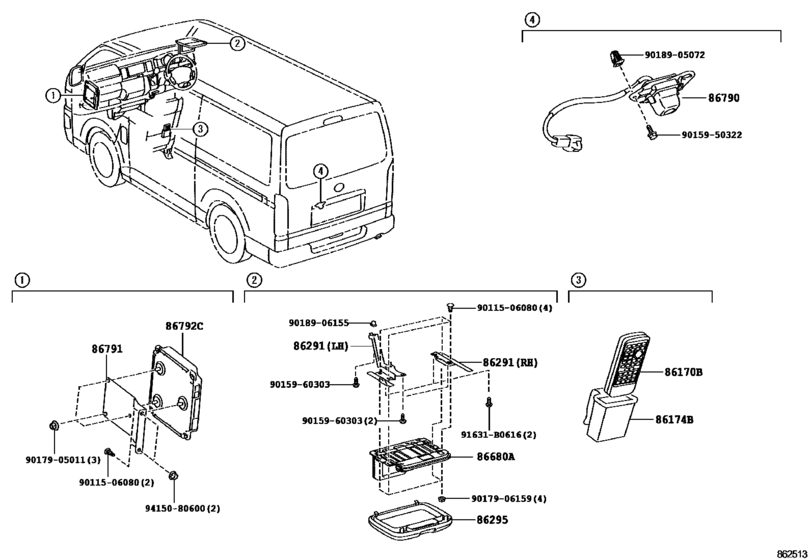

Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL) 14

#	OEM	Part name
86790	86790-26050	Camera Assy, Television
86790	86790-26051	Camera Assy, Television
86790	86790-26060	Camera Assy, Television
91631	91631-B0616	BOLT WWASHER
9011506080	90115-06080	New Genuine Part
9015950322	90159-50322	SCREW WWASHER
9015960303	90159-60303	SCREW
9017905011	90179-05011	NUT
9017905011	90178-A0005	New Genuine Part
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9018905072	90189-05072	GROMMET SCREW
9018906155	90189-06155	GROMMET SCREW
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
86790-26050	Camera Assy, Television	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
86790-26051	Camera Assy, Television	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
86790-26060	Camera Assy, Television	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90115-06080	New Genuine Part	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90159-50322	SCREW WWASHER	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90159-60303	SCREW	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90178-A0005	New Genuine Part	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90179-05011	NUT	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90189-05072	GROMMET SCREW	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
90189-06155	GROMMET SCREW	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
91631-B0616	BOLT WWASHER	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)
94150-80600	NUT FLANGE	Rear Monitor Display & Camera ([12.2005 - 08.2010] (0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ; (0512-1008)GC,GL,SGL)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
