KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

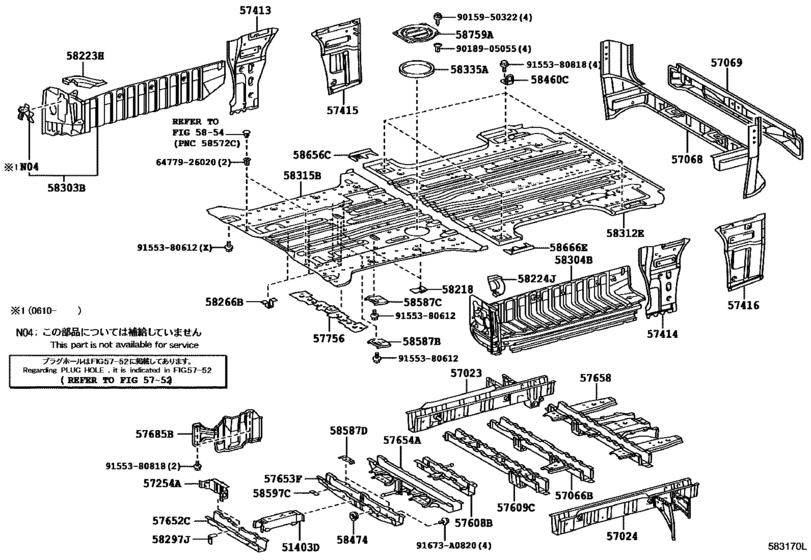

Rear Floor Panel & Rear Floor Member ([09.2007 - ] (0709- )KDH211,TRH211,216) 62
#OEMPart name
51403 51403-26240 Bracket Sub-Assy, Engine Rear Mounting
51403 51403-26242 Bracket Sub-Assy, Engine Rear Mounting
51403 51403-26241 Bracket Sub-Assy, Engine Rear Mounting
57023 57023-26650 Member Sub-Assy, Rear Side, Rh
57024 57024-26660 Member Sub-Assy, Rear Side, Lh
57066 57066-26161 Member Sub-Assy, Rear Floor Cross, No.6
57066 57066-26162 Member Sub-Assy, Rear Floor Cross, No.6
57066 57066-26270 Member Sub-Assy, Rear Floor Cross, No.6
57066 57066-26272 Member Sub-Assy, Rear Floor Cross, No.6
57068 57068-26300 Member Sub-Assy, Rear Floor Rear Cross, Inner
57069 57069-26170 Member Sub-Assy, Rear Floor Rear Cross, Outer
57254 57254-26040 Reinforcement, Engine Rear Mounting Member
57254 57254-26041 Reinforcement, Engine Rear Mounting Member
57413 57405-26B10 Rail, Floor Side, Center Rh
57414 57406-26530 Rail, Floor Side, Center Lh
57415 57415-26220 Rail, Floor Side, Rear Rh
57416 57416-26170 Rail, Floor Side, Rear Lh
57608 57608-26370 Member Sub-Assy, Rear Floor Cross, No.4
57608 57608-26371 Member Sub-Assy, Rear Floor Cross, No.4
57608 57608-26372 Member Sub-Assy, Rear Floor Cross, No.4
57609 57609-26230 Member Sub-Assy, Rear Floor Cross, No.5
57609 57609-26232 Member Sub-Assy, Rear Floor Cross, No.5
57609 57609-26231 Member Sub-Assy, Rear Floor Cross, No.5
57652 57652-26080 Member, Rear Floor Cross, No.1
57652 57652-26081 Member, Rear Floor Cross, No.1
57653 57663-26040 Member, Rear Floor Cross, No.2
57653 57663-26041 Member, Rear Floor Cross, No.2
57654 57607-26670 Member, Rear Floor Cross, No.3
57654 57607-26671 Member, Rear Floor Cross, No.3
57658 57067-26280 Member, Rear Floor Cross, No.7
57658 57067-26281 Member, Rear Floor Cross, No.7
57685 57685-26040 Guard, Fuel Tank
57756 57756-26030 Plate, Rear Floor No.2 Crossmember
58218 58218-26010 Plate, Seat Floor Panel
58223 58223-26070 Reinforcement, Floor Panel Side, Rh
58223 58223-26071 Reinforcement, Floor Panel Side, Rh
58224 58224-26090 Reinforcement, Floor Panel Side, Lh
58224 58224-26091 Reinforcement, Floor Panel Side, Lh
58266 58266-95J00 Bracket, Fuel Tube Clamp
58297 58297-26020 Retainer, Floor Clamp
58303 58303-26240 Step Sub-Assy, Rear Floor, Rh
58304 58304-26450 Step Sub-Assy, Rear Floor, Lh
58312 58312-26430 Panel, Rear Floor, Rear
58312 58312-26431 Panel, Rear Floor, Rear
58315 58315-26880 Panel, Rear Floor, Front
58315 58315-26881 Panel, Rear Floor, Front
58335 58335-26030 Seal, Rear Floor Side Service Hole Cover
58460 58460-33010 Striker Assy, Luggage Hold Belt
58474 58474-26010 Cover, Inspection Hole
58587 58587-26060 Plate, No.3 Seat Leg Space Pocket, No.1 Rh
58587 58587-26080 Plate, No.3 Seat Leg Space Pocket, No.1 Lh
58587 58587-26010 Plate, No.3 Seat Leg Space Pocket, No.1
58597 58597-26030 Plate, Seat Track Set
58656 58656-26020 Plate, Rear Floor, Center Lower No.2 Rh
58666 58666-26010 Plate, Rear Floor, Center Lower No.2 Lh
58759 58759-26010 Cover, Fuel Tank Inspection Hole
91673 91673-A0820 BOLT FLANGE
6477926020 64779-26020 Clip(For Front Floor Carpet)
9015950322 90159-50322 SCREW WWASHER
9018905055 90189-05055 GROMMET
9155380612 91553-80612 BOLT FLANGE
9155380818 91553-80818 BOLT FLANGE
