Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

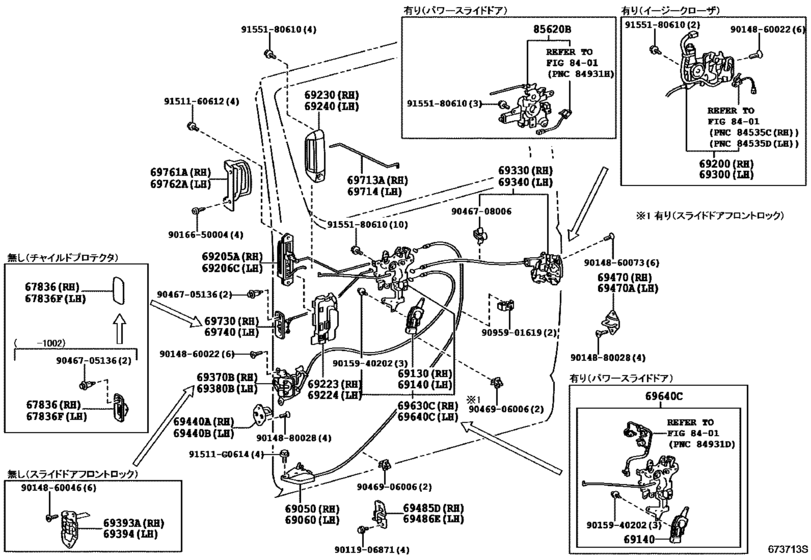

Rear Door Lock & Handle ([08.2004 - ] (0408- )) 57

#	OEM	Part name
69050	69050-26010	Lock Assy, Slide Door Full Open Stop, Rh
69050	69050-26011	Lock Assy, Slide Door Full Open Stop, Rh
69060	69060-26010	Lock Assy, Slide Door Full Open Stop, Lh
69060	69060-26011	Lock Assy, Slide Door Full Open Stop, Lh
69130	69130-26010	Actuator Assy, Rear Door Lock, Rh
69130	69130-26060	Actuator Assy, Rear Door Lock, Rh
69140	69140-26010	Actuator Assy, Rear Door Lock, Lh
69140	69140-26020	Actuator Assy, Rear Door Lock, Lh
69200	69200-26040	Lock Assy, Power Slide Door, Rh
69200	69200-26041	Lock Assy, Power Slide Door, Rh
69205	69207-26010-B0	Handle Sub-Assy, Rear Door Inside, Rh
69205	69207-26010-B1	Handle Sub-Assy, Rear Door Inside, Rh
69206	69208-26010-B0	Handle Sub-Assy, Rear Door Inside, Lh
69206	69208-26010-B1	Handle Sub-Assy, Rear Door Inside, Lh
69223	69241-26030	Case, Rear Door Outside Handle, Rh
69224	69242-26030	Case, Rear Door Outside Handle, Lh
69230	69230-26080	Handle Assy, Rear Door Outside, Rh
69240	69240-26090	Handle Assy, Rear Door Outside, Lh
69300	69300-26140	Lock Assy, Power Slide Door, Lh
69300	69300-26190	Lock Assy, Power Slide Door, Lh
69300	69300-26141	Lock Assy, Power Slide Door, Lh
69370	69370-26010	Lock Assy, Slide Door, Front Rh
69380	69380-26010	Lock Assy, Slide Door, Front Lh
69440	69440-28050	Plate Assy, Slide Door Front Lock Striker
69470	69470-28100	Plate Assy, Slide Door Lock Striker
69470	69470-28110	Plate Assy, Slide Door Lock Striker
69485	69485-26020	Striker, Slide Door Open, Rh
69486	69486-26020	Striker, Slide Door Open, Lh
69630	69630-26230	Control Assy, Slide Door Lock Remote, Rh
69630	69630-26232	Control Assy, Slide Door Lock Remote, Rh
69630	69630-26240	Control Assy, Slide Door Lock Remote, Rh
69630	69630-26271	Control Assy, Slide Door Lock Remote, Rh
69630	69630-26241	Control Assy, Slide Door Lock Remote, Rh
69640	69640-26370	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26372	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26381	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26383	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26382	Control Assy, Slide Door Lock Remote, Lh
69713	69713-26020	Link, Rear Door Lock Remote Control, Rh
69714	69714-26020	Link, Rear Door Lock Remote Control, Lh
69730	69730-26020	Link Assy, Rear Door Open Control, Rh
69740	69740-26020	Link Assy, Rear Door Open Control, Lh
91511	91511-G0614	BOLTFLANGE
9011906871	90119-06871	BOLT WWASHER
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014860046	90148-60046	New Genuine Part
9014860073	90148-60073	SCREW HEXALOBULAR
9014880028	90148-80028	SCREW, HEX LOBULAR
9015940202	90159-40202	SCREW WWASHER
9016650004	90166-50004	Screw Hex Lobular
9046705136	90467-05136	New Genuine Part
9046708006	90467-08006	New Genuine Part
9046906006	90469-06006	CLAMP
9095901619	90959-01619	CLAMP
9151160612	91511-60612	BOLT
9155180610	91551-80610	BOLT FLANGE

OEM	Part name	Category
69050-26010	Lock Assy, Slide Door Full Open Stop, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69050-26011	Lock Assy, Slide Door Full Open Stop, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69060-26010	Lock Assy, Slide Door Full Open Stop, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69060-26011	Lock Assy, Slide Door Full Open Stop, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69130-26010	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69130-26060	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69140-26010	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69140-26020	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69200-26040	Lock Assy, Power Slide Door, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69200-26041	Lock Assy, Power Slide Door, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69207-26010-B0	Handle Sub-Assy, Rear Door Inside, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69207-26010-B1	Handle Sub-Assy, Rear Door Inside, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69208-26010-B0	Handle Sub-Assy, Rear Door Inside, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69208-26010-B1	Handle Sub-Assy, Rear Door Inside, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69230-26080	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69240-26090	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69241-26030	Case, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69242-26030	Case, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69300-26140	Lock Assy, Power Slide Door, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69300-26141	Lock Assy, Power Slide Door, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69300-26190	Lock Assy, Power Slide Door, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69370-26010	Lock Assy, Slide Door, Front Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69380-26010	Lock Assy, Slide Door, Front Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69440-28050	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69470-28100	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69470-28110	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69485-26020	Striker, Slide Door Open, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69486-26020	Striker, Slide Door Open, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69630-26230	Control Assy, Slide Door Lock Remote, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69630-26232	Control Assy, Slide Door Lock Remote, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69630-26240	Control Assy, Slide Door Lock Remote, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69630-26241	Control Assy, Slide Door Lock Remote, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69630-26271	Control Assy, Slide Door Lock Remote, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69640-26370	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69640-26372	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69640-26381	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69640-26382	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69640-26383	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69713-26020	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69714-26020	Link, Rear Door Lock Remote Control, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69730-26020	Link Assy, Rear Door Open Control, Rh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
69740-26020	Link Assy, Rear Door Open Control, Lh	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90119-06871	BOLT WWASHER	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90148-60022	BOLT	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90148-60046	New Genuine Part	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90148-60073	SCREW HEXALOBULAR	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90148-80028	SCREW, HEX LOBULAR	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90166-50004	Screw Hex Lobular	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90467-05136	New Genuine Part	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90467-08006	New Genuine Part	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90469-06006	CLAMP	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
90959-01619	CLAMP	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
91511-60612	BOLT	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
91511-G0614	BOLTFLANGE	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
91551-80610	BOLT FLANGE	Rear Door Lock & Handle ([08.2004 - ] (0408- ))
