Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

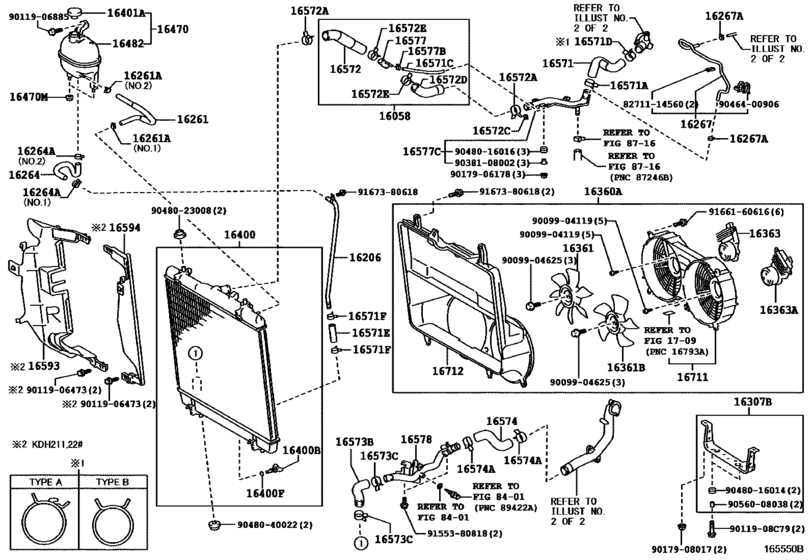

Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV) 108

#	OEM	Part name
16025	16025-30021	Pipe Sub-Assy, Water By-Pass, No.5
16027	16027-30130	Pipe Sub-Assy, Turbo Water, No.1
16058	16058-30020	Hose Sub-Assy, Radiator, No.2
16206	16206-75010	Pipe Sub-Assy, Water By-Pass
16207	16207-30160	Pipe Sub-Assy, Water By-Pass, No.2
16209	16209-30010	Pipe Sub-Assy, Water By-Pass, No.4
16258	16258-67010	Gasket(For Heater Return)
16261	16261-75250	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-75190	Hose, Water By-Pass, No.2
16264	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16264	96136-42501	Clip(For Ventilation Hose)
16264	96138-42501	Clip, Hose(For Radiator Hose Sub-Assy)
16264	16264-30100	Hose, Water By-Pass, No.2
16264	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	16267-30130	Hose, Water By-Pass, No.3
16267	90467-19022	Clip(For Ventilation Hose No.2)
16267	16267-30150	Hose, Water By-Pass, No.3
16281	16281-30110	Hose, Water By-Pass, No.4
16282	16282-30030	Hose, Water By-Pass, No.5
16283	16283-30020	Hose, Water By-Pass, No.6
16284	16284-30050	Hose, Turbo Water, No.1
16284	16284-30140	Hose, Turbo Water, No.1
16285	16285-30120	Hose, Turbo Water, No.2
16286	99555-10100	Hose, Water By-Pass, No.2
16287	16287-30030	Hose, Turbo Water, No.4
16288	16288-30010	Pipe, Water By-Pass, No.4
16288	16288-30011	Pipe, Water By-Pass, No.4
16289	16289-30020	Pipe, Water By-Pass, No.5
16291	16291-30010	Joint, Water Hose
16294	16293-30020	Hose, Water By-Pass, No.11
16295	16295-30020	Hose, Water By-Pass, No.7
16298	16299-30010	Hose, Water By-Pass, No.12
16298	16299-30011	Hose, Water By-Pass, No.12
16307	16307-30010	Bracket Sub-Assy, Fan
16321	16321-0K010	Inlet, Water
16331	16331-30070	Outlet, Water
16331	90916-03118	Thermostat - *WAX 82-95C
16331	90910-09133	Plug(For Water Outlet)
16341	16341-30020	Gasket, Water Outlet
16346	16346-0K010	Gasket, Thermostat
16347	16347-30010	Gasket, Water By-Pass
16360	16360-30022	Fan Assy, W/motor
16360	16360-30023	Fan Assy, W/motor
16361	16361-30060	Fan
16361	16361-30050	Fan
16363	16363-30041	Motor, Cooling Fan
16400	16400-30280	Radiator Assy
16400	16400-30281	Radiator Assy
16400	16417-30170	Cock Sub-Assy, Radiator Drain
16400	16418-15520	Packing(For Radiator Drain Cock)
16401	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16401	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16401	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16470	16470-75122	Tank Assy, Radiator Reserve
16470	16470-75124	Tank Assy, Radiator Reserve
16470	16470-75123	Tank Assy, Radiator Reserve
16470	90480-14470	Grommet
16470	90480-15023	Grommet
16482	16480-75070	Tank Sub-Assy, Radiator Reserve
16571	16571-30070	Hose, Radiator, Inlet
16571	96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	99555-10500	Hose, Water, No.1
16571	90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)
16571	99555-20075	Hose, Water
16572	16572-30110	Hose, Radiator, Outlet
16572	16572-30090	Hose, Radiator, No.2
16572	96136-54301	Clip, Radiator Hose, No.1
16573	16573-30040	Hose, Radiator, No.3
16574	16574-30020	Hose, Radiator, No.4
16577	16577-30040	Pipe, Radiator, No.7
16577	16577-30021	Pipe, Radiator
16578	16578-30011	Pipe, Radiator, No.2
16593	16593-75012	Guide, Radiator Air, No.1
16594	16594-75011	Guide, Radiator Air, No.2
16711	16711-30081	Shroud, Fan
16711	16711-30082	Shroud, Fan
16712	16712-75122	Shroud, Fan, No.2
9011908	90119-08C79	New Genuine Part
1658130230	16581-30230	Clamp, Hose(for Water Hose)
8271114560	82711-14560	Wire, Fuse To Fuse(for Combustion Heater)
9009904119	90099-04119	BOLT WASHER HEAD
9009904625	90099-04625	New Genuine Part
9011906473	90119-06473	BOLTWWASHER
9011906885	90119-06885	Bolt, Radiator Tank Pipe
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017908017	90179-08017	NUT
9038108002	90381-08002	Grommet(For Intake Air Connector)
9040112097	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
9043012040	90430-12040	New Genuine Part
9046400906	90464-00906	New Genuine Part
9048016014	90480-16014	Grommet
9048016016	90480-16016	New Genuine Part
9048023008	90480-23008	Support, Radiator, Lower
9048040022	90480-40022	Support, Radiator, Lower
9056008038	90560-08038	Spacer(For Air Cleaner)
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155180818	91551-80818	Bolt, Union(For Clutch Master Cylinder)
9155380818	91553-80818	BOLT FLANGE
9164380635	91643-80635	New Genuine Part
9166160616	91661-60616	BOLT
9167180612	91671-80612	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180814	91671-80814	BOLT FLANGE WWASER
9167180814	90119-A0165	New Genuine Part
9167380618	91673-80618	BOLT FLANGE WWASER
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16025-30021	Pipe Sub-Assy, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16027-30130	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16058-30020	Hose Sub-Assy, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16206-75010	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16207-30160	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16209-30010	Pipe Sub-Assy, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16258-67010	Gasket(For Heater Return)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16261-75250	Hose, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16264-30100	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16264-75190	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16267-30130	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16267-30150	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16281-30110	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16282-30030	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16283-30020	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16284-30050	Hose, Turbo Water, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16284-30140	Hose, Turbo Water, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16285-30120	Hose, Turbo Water, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16287-30030	Hose, Turbo Water, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16288-30010	Pipe, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16288-30011	Pipe, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16289-30020	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16291-30010	Joint, Water Hose	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16293-30020	Hose, Water By-Pass, No.11	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16295-30020	Hose, Water By-Pass, No.7	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16299-30010	Hose, Water By-Pass, No.12	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16299-30011	Hose, Water By-Pass, No.12	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16307-30010	Bracket Sub-Assy, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16321-0K010	Inlet, Water	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16331-30070	Outlet, Water	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16341-30020	Gasket, Water Outlet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16346-0K010	Gasket, Thermostat	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16347-30010	Gasket, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16360-30022	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16360-30023	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16361-30050	Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16361-30060	Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16363-30041	Motor, Cooling Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16400-30280	Radiator Assy	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16400-30281	Radiator Assy	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16417-30170	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16470-75122	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16470-75123	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16470-75124	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16480-75070	Tank Sub-Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16571-30070	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16572-30090	Hose, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16572-30110	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16573-30040	Hose, Radiator, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16574-30020	Hose, Radiator, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16577-30021	Pipe, Radiator	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16577-30040	Pipe, Radiator, No.7	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16578-30011	Pipe, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16581-30230	Clamp, Hose(for Water Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16593-75012	Guide, Radiator Air, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16594-75011	Guide, Radiator Air, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16711-30081	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16711-30082	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
16712-75122	Shroud, Fan, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
82711-14560	Wire, Fuse To Fuse(for Combustion Heater)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90099-04625	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90119-06473	BOLTWWASHER	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90119-06885	Bolt, Radiator Tank Pipe	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90119-08C79	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90119-A0165	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90179-06178	Nut (For Rear Wiper Arm Setting)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90179-08017	NUT	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90381-08002	Grommet(For Intake Air Connector)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90430-12040	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90464-00906	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90467-19022	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-14470	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-15023	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-16014	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-16016	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-23008	Support, Radiator, Lower	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90480-40022	Support, Radiator, Lower	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90560-08038	Spacer(For Air Cleaner)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90910-09133	Plug(For Water Outlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
90916-03118	Thermostat - *WAX 82-95C	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91551-80818	Bolt, Union(For Clutch Master Cylinder)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91553-80818	BOLT FLANGE	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91643-80635	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91661-60616	BOLT	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91671-80612	Bolt	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91671-80814	BOLT FLANGE WWASER	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
91673-80618	BOLT FLANGE WWASER	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96136-54301	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
96138-42501	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
99555-10100	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
99555-10500	Hose, Water, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)
99555-20075	Hose, Water	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
