KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

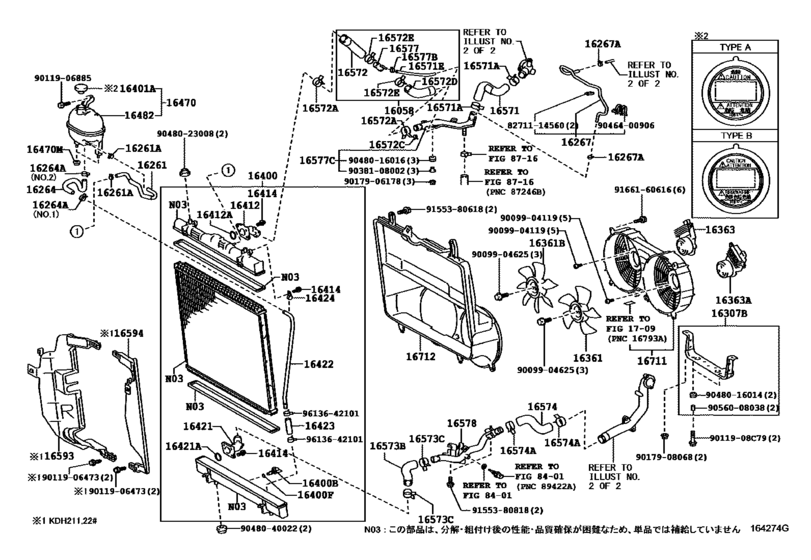

Radiator & Water Outlet ([08.2010 - ] (1008- )1KDFTV) 85
#OEMPart name
16058 16058-30010 Hose Sub-Assy, Radiator, No.2
16261 16261-75170 Hose, Water By-Pass
16261 96135-51300 Clamp, Hose
16264 16264-75110 Hose, Water By-Pass, No.2
16264 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
16264 90467-22011 Clip(For Water By-Pass Hose No.1)
16264 96136-42501 Clip(For Ventilation Hose)
16267 16267-30130 Hose, Water By-Pass, No.3
16267 90467-13073 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16307 16307-30010 Bracket Sub-Assy, Fan
16307 16307-75021 Bracket Sub-Assy, Fan
16361 16361-30050 Fan
16361 16361-75030 Fan
16361 16361-30060 Fan
16361 16361-75040 Fan, No.2
16363 16363-20390 Motor, Cooling Fan
16363 16363-75020 MOTOR COOLING
16363 16363-30040 Motor, Cooling Fan
16363 16363-30041 Motor, Cooling Fan
16363 16363-75030 Motor, Cooling Fan
16363 16363-75040 MOTOR COOLING
16400 16400-30170 Radiator Assy
16400 16400-30171 Radiator Assy
16400 16400-30172 Radiator Assy
16400 16417-30170 Cock Sub-Assy, Radiator Drain
16400 16418-15520 Packing(For Radiator Drain Cock)
16401 16401-75120 Cap Sub-Assy, Radiator Reserve Tank
16401 16475-51010 Cap Sub-Assy, Radiator Reserve Tank
16401 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16401 16475-37010 Cap Sub-Assy, Radiator Reserve Tank
16412 16412-30171 Pipe, Radiator Tank, Upper
16412 16412-75540 Pipe, Radiator Tank, Upper
16412 16413-30171 Ring, O(For Radiator Upper Tank Pipe)
16412 16413-75540 Ring, O(For Radiator Upper Tank Pipe)
16412 16413-75541 Ring, O(For Radiator Upper Tank Pipe)
16414 16414-75540 Bolt, Radiator Tank Pipe
16414 90119-06885 Bolt, Radiator Tank Pipe
16421 16421-30171 Pipe, Radiator Tank, Lower No.1
16421 16422-30171 Pipe, Radiator Tank, Lower No.1
16422 16422-75540 Pipe, Radiator Tank, Lower No.2
16423 16423-75540 Hose, Radiator Tank
16424 16424-75540 Clamp, Radiator Tank Pipe
16470 16470-75121 Tank Assy, Radiator Reserve
16470 16470-75124 Tank Assy, Radiator Reserve
16470 16470-75122 Tank Assy, Radiator Reserve
16470 90480-15023 Grommet
16482 16480-75070 Tank Sub-Assy, Radiator Reserve
16571 16571-30070 Hose, Radiator, Inlet
16571 90466-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16571 99555-10500 Hose, Water, No.1
16572 16572-30061 Hose, Radiator, Outlet
16572 16572-30090 Hose, Radiator, No.2
16572 90467-37005 Clip(For Water Inlet Hose)
16573 16573-30020 Hose, Radiator, No.3
16574 16574-30020 Hose, Radiator, No.4
16577 16577-30040 Pipe, Radiator, No.7
16577 16577-30021 Pipe, Radiator
16578 16578-30011 Pipe, Radiator, No.2
16593 16593-75010 Guide, Radiator Air, No.1
16593 16593-75011 Guide, Radiator Air, No.1
16594 16594-75010 Guide, Radiator Air, No.2
16711 16711-30080 Shroud, Fan
16711 16711-30082 Shroud, Fan
16711 16711-30081 Shroud, Fan
16711 16711-75230 Shroud, Fan
16712 16712-75121 Shroud, Fan, No.2
9011908 90119-08C79 New Genuine Part
8271114560 82711-14560 Wire, Fuse To Fuse(for Combustion Heater)
9009904119 90099-04119 BOLT WASHER HEAD
9009904625 90099-04625 New Genuine Part
9011906473 90119-06473 BOLTWWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9017908068 90179-08068 NUT
9038108002 90381-08002 Grommet(For Intake Air Connector)
9046400906 90464-00906 New Genuine Part
9048016014 90480-16014 Grommet
9048016016 90480-16016 New Genuine Part
9048023008 90480-23008 Support, Radiator, Lower
9048040022 90480-40022 Support, Radiator, Lower
9056008038 90560-08038 Spacer(For Air Cleaner)
9155380618 91553-80618 Direct
9155380818 91553-80818 BOLT FLANGE
9166160616 91661-60616 BOLT
9613642101 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
