Search › Model › KDH211
KDH211

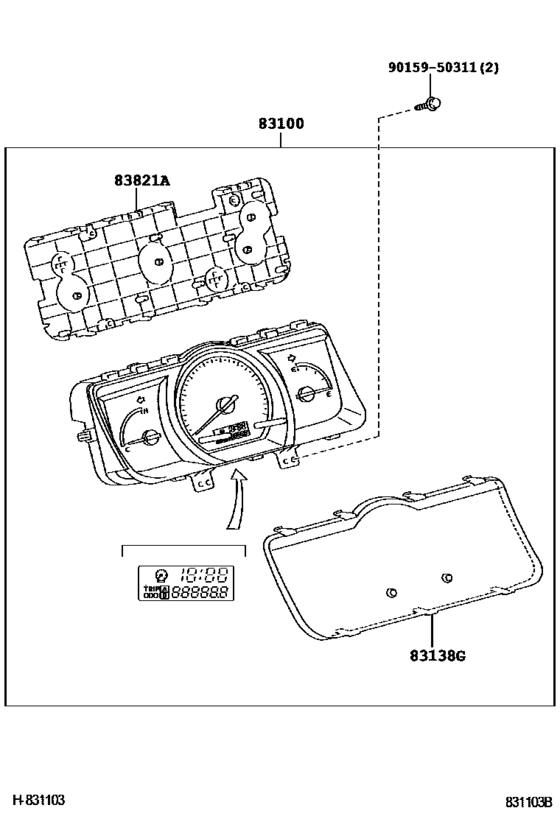

Meter ([08.2004 - ] (0408- )) 8
| # | OEM | Part name |
|---|---|---|
| 83100 | 83800-26C80 | Meter Assy, Combination |
| 83100 | 83800-26N90 | Meter Assy, Combination |
| 83100 | 83800-26C81 | Meter Assy, Combination |
| 83100 | 83800-26P00 | Meter Assy, Combination |
| 83138 | 83852-26C20 | Glass, Combination Meter |
| 83821 | 83821-26A01 | Cover, Combination Meter, No.1 |
| 9015950311 | 90159-50311 | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 83800-26C80 | Meter Assy, Combination | Meter ([08.2004 - ] (0408- )) |
| 83800-26C81 | Meter Assy, Combination | Meter ([08.2004 - ] (0408- )) |
| 83800-26N90 | Meter Assy, Combination | Meter ([08.2004 - ] (0408- )) |
| 83800-26P00 | Meter Assy, Combination | Meter ([08.2004 - ] (0408- )) |
| 83821-26A01 | Cover, Combination Meter, No.1 | Meter ([08.2004 - ] (0408- )) |
| 83852-26C20 | Glass, Combination Meter | Meter ([08.2004 - ] (0408- )) |
| 90159-50311 | SCREW | Meter ([08.2004 - ] (0408- )) |
| 90159-A0034 | SCREW WWASHER | Meter ([08.2004 - ] (0408- )) |
