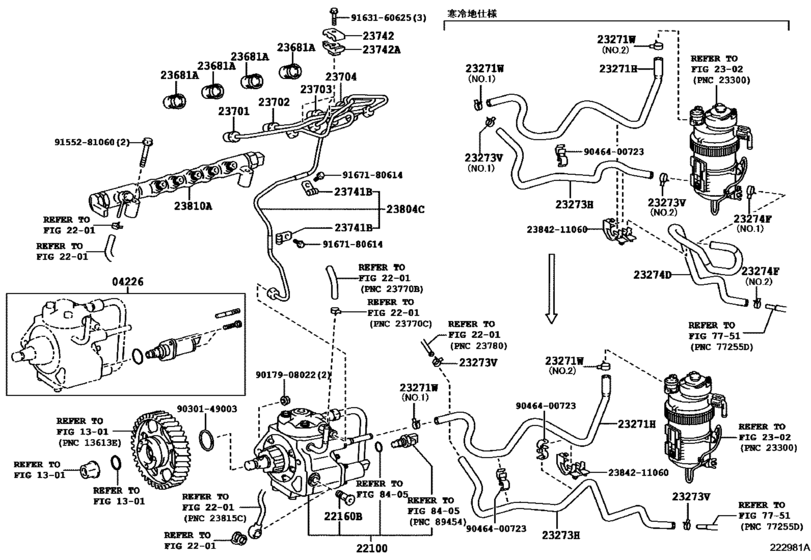

| 04226-30020 |
Valve Kit, Suction Control |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 22100-30160 |
Pump Assy, Injection Or Supply |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 22100-30161 |
Pump Assy, Injection Or Supply |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 22569-30150 |
Screw |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23271-30150 |
Hose, Fuel, No.1 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23271-30151 |
Hose, Fuel, No.1 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23273-30270 |
Hose, Fuel, No.2 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23273-30280 |
Hose, Fuel(For Injection Pump To Fuel Pipe) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23274-30030 |
Hose, Fuel, No.3 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23681-30010 |
Seal, Nozzle Holder |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23701-30081 |
Pipe Sub-Assy, Injection, No.1 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23702-30081 |
Pipe Sub-Assy, Injection, No.2 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23703-30081 |
Pipe Sub-Assy, Injection, No.3 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23704-30081 |
Pipe Sub-Assy, Injection, No.4 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23741-30010 |
Clamp, Injection Pipe, No.1 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23742-27010 |
Clamp, Injection Pipe, No.2 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23742-30040 |
Clamp, Injection Pipe, No.3 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23742-58020 |
Clamp, Injection Pipe, No.2 |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23804-39036 |
Pipe Sub-Assy, Fuel Inlet |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23810-30130 |
Rail Assy, Common |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 23842-11060 |
Clamp, Fuel Pipe, No.2(For Injection Pump) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 90179-08022 |
NUT |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 90301-49003 |
Gasket, Injection Pump |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 90464-00723 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 90466-13003 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 91552-81060 |
Bolt, No.3(For Alternator) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 91631-60625 |
BOLT WWASHER |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 91671-80614 |
Bolt (For Transmission Control Cable Bracket) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 96132-51300 |
Clip(For Ventilation Hose No.2) |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
| 96135-51300 |
Clamp, Hose |
Injection Pump Assembly ([12.2013 - ] (1312- )1KDFTV) |
