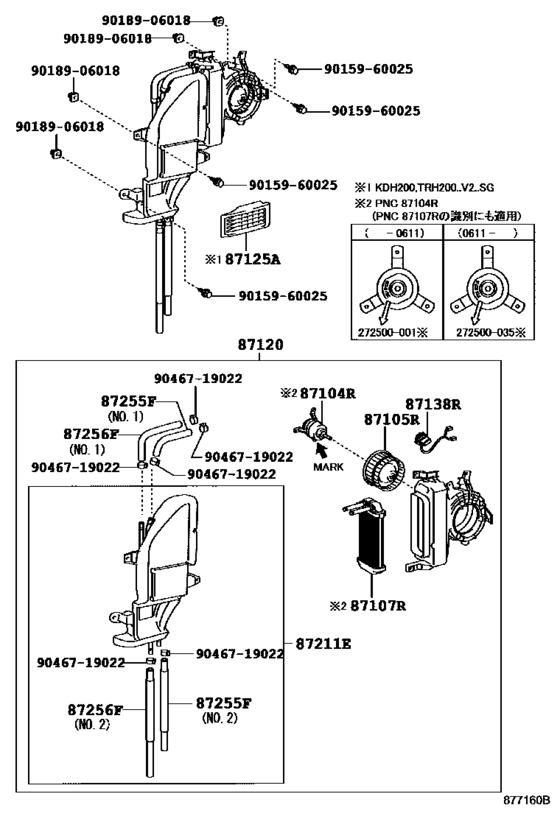

| 87104-26020 |
Motor Sub-Assy, Rear Heater Blower |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87105-26020 |
Fan Sub-Assy, Rear Heater Blower |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87107-26310 |
Unit Sub-Assy, Rear Heater |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87110-26380 |
Heater Assy, Rear |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87110-26520 |
Heater Assy, Rear |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87138-26170 |
Resistor, Rear Heater Blower |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87202-26010 |
Duct, Air |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87202-26040 |
Duct, Air |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87245-26A30 |
Hose, Rear Heater Water Inlet, F(For Heater Unit) |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87245-26A40 |
Hose, Rear Heater Water Outlet, F (For Heater Unit) |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87245-26A50 |
Hose, Rear Heater Water Inlet, F(For Heater Unit) |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 87245-26A60 |
Hose, Rear Heater Water Outlet, F (For Heater Unit) |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 90159-60025 |
SCREW W-WASHER |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 90189-06018 |
GROMMET |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
| 90467-19022 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Heater Unit & Blower ([09.2007 - ] (0501-0709)KDH220,225 ; (0501- )TRH221,226 ; (0709- )TRH200..V1..HRF..5D ; (0 709- )KDH20#,2 11,221,TRH211,216..05S,06S,09S..CBU) |
