KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

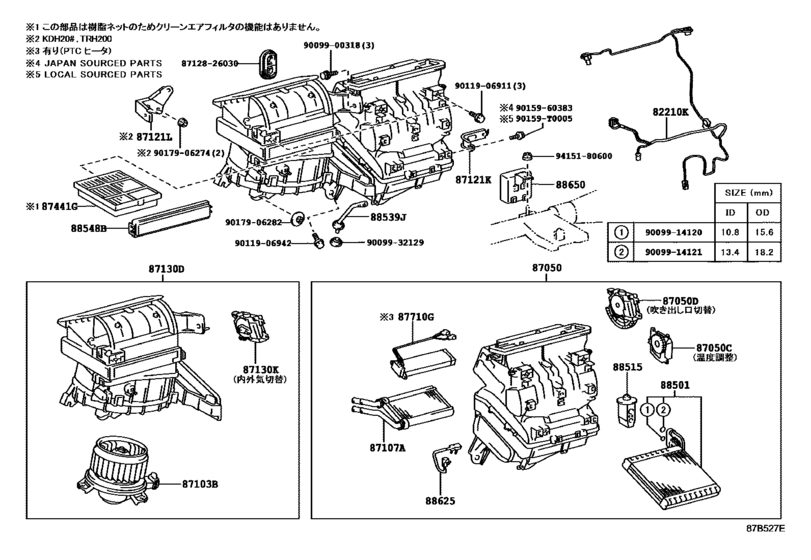

Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU) 53

#	OEM	Part name
82210	82212-26010	Harness Assy, Air Conditioner
87050	87050-26020	Radiator Assy, Air Conditioner
87050	87050-26030	Radiator Assy, Air Conditioner
87050	87050-26150	Radiator Assy, Air Conditioner
87050	87050-26160	Radiator Assy, Air Conditioner
87050	87106-12170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87050	87106-26100	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2
87103	87103-12060	Motor Sub-Assy, Blower W/fan
87103	87103-26060	Motor Sub-Assy, Blower W/fan
87103	87103-26062	Motor Sub-Assy, Blower W/fan
87107	87107-26210	Unit Sub-Assy, Heater Radiator
87107	87107-42170	Unit Sub-Assy, Heater Radiator
87121	87121-26030	Bracket, Heater
87121	87121-26200	Bracket, Heater
87130	87130-12541	Blower Assy
87130	87130-26161	Blower Assy
87130	87106-42120	Servo Sub-Assy, Damper, No.1
87441	87441-26010	Filter, Heater Air - CLEAN AIR
87710	87710-26060	Quick Heater Assy
87710	87710-0K020	Quick Heater Assy
87710	87710-26080	Quick Heater Assy
87710	87710-42030	Quick Heater Assy
88501	88501-26210	Evaporator Sub-Assy, Cooler, No.1
88501	88501-26211	Evaporator Sub-Assy, Cooler, No.1
88501	88501-26220	Evaporator Sub-Assy, Cooler, No.1
88501	88501-26281	Evaporator Sub-Assy, Cooler, No.1
88501	88501-26221	Evaporator Sub-Assy, Cooler, No.1
88501	88501-26280	Evaporator Sub-Assy, Cooler, No.1
88501	88501-72020	Evaporator Sub-Assy, Cooler, No.1
88515	88515-26070	Valve, Cooler Expansion
88515	88515-26080	Valve, Cooler Expansion
88515	88515-26100	Valve, Cooler Expansion
88539	88539-26480	Hose, Drain Cooler
88548	88548-26070	Case, Air Filter
88625	88625-26090	Thermistor, Cooler, No.1
88625	88620-02110	Thermistor, Cooler, No.1
88650	88650-26400	Amplifier Assy, Cooler Stabilizer
88650	88650-26500	Amplifier Assy, Cooler Stabilizer
88650	88650-26530	Amplifier Assy, Cooler Stabilizer
88650	88650-26540	Amplifier Assy, Cooler Stabilizer
90159	90159-T0005	New Genuine Part
8712826030	87128-26030	Grommet, Heater
9009900318	90099-00318	New Genuine Part
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9009932129	90099-32129	Grommet (For Cooler Unit Drain Hose)
9011906911	90119-06911	BOLT WWASHER
9011906942	90119-06942	BOLT WWASHER
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906274	90179-06274	Nut
9017906282	90179-06282	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82212-26010	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87050-26020	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87050-26030	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87050-26150	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87050-26160	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87103-12060	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87103-26060	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87103-26062	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87106-12170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87106-26100	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87106-42120	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87107-26210	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87107-42170	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87121-26030	Bracket, Heater	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87121-26200	Bracket, Heater	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87128-26030	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87130-12541	Blower Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87130-26161	Blower Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87441-26010	Filter, Heater Air - CLEAN AIR	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87710-0K020	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87710-26060	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87710-26080	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
87710-42030	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26210	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26211	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26220	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26221	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26280	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-26281	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88501-72020	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88515-26070	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88515-26080	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88515-26100	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88539-26480	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88548-26070	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88620-02110	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88625-26090	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88650-26400	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88650-26500	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88650-26530	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
88650-26540	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90099-32129	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90119-06911	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90119-06942	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90159-A0010	SCREW WWASHER TAPP	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90159-T0005	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90179-06274	Nut	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
90179-06282	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Heating & Air Conditioning - Cooler Unit ([08.2010 - ] ﾌﾛﾝﾄ---ｵｰﾄ (1008- )02S ; (1008- )GC,GL,SGL..CBU)
