Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

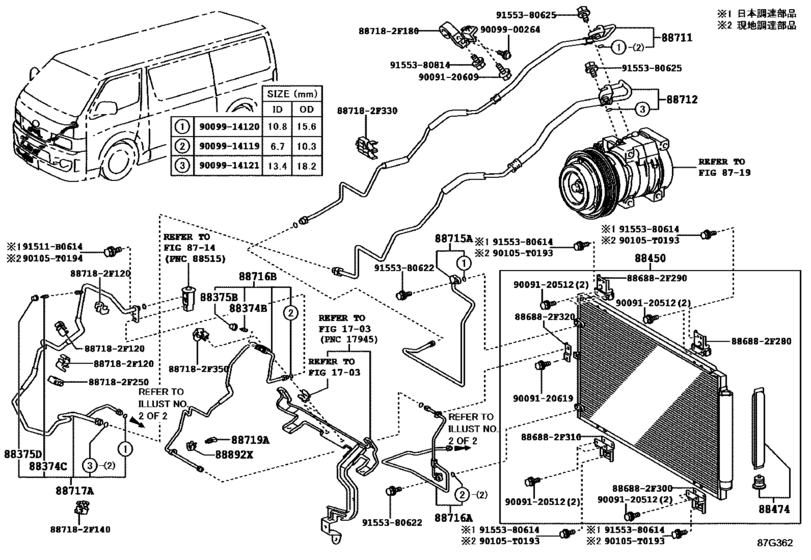

Heating & Air Conditioning - Cooler Piping ([09.2007 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ (0501-0709)KDH22# ; (0709- )KDH211,22#) 41
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88450 88450-26120 Condenser Assy, W/receiver
88474 88474-17010 Dryer, Cooler
88711 88711-2F171 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-2F191 Hose, Cooler Refrigerant Suction, No.1
88715 88715-26400 Pipe, Cooler Refrigerant Discharge, A
88715 88715-26420 Pipe, Cooler Refrigerant Discharge, A
88716 88710-2F641 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2N140 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2N160 Pipe, Cooler Refrigerant Liquid, B
88717 88717-2F670 Pipe, Cooler Refrigerant Suction, A
88719 88719-33020 Sensor, Airconditioner Pressure
88719 88719-40020 Sensor, Airconditioner Pressure
90105 90105-T0193 New Genuine Part
90105 90105-T0194 New Genuine Part
91511 91511-B0614 BOLT, FLANGE
886882 88688-2F280 Bracket, Cooler Diaphragm
886882 88688-2F290 Bracket, Cooler Diaphragm
886882 88688-2F300 Bracket, Cooler Diaphragm
886882 88688-2F310 Bracket, Cooler Diaphragm
886882 88688-2F320 Bracket, Cooler Diaphragm
887182 88718-2F120 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F140 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F180 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F250 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F330 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F350 Clamp(For Cooler Refrigerant Pipe), No.1
9009120512 90091-20512 BOLT WWASHER
9009120609 90091-20609 BOLT
9009120619 90091-20619 BOLT
9009900264 90099-00264 SCREW
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9155380614 91553-80614 BOLT FLANGE
9155380622 91553-80622 BOLT FLANGE
9155380625 91553-80625 New Genuine Part
9155380814 91553-80814 BOLT FLANGE
