Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

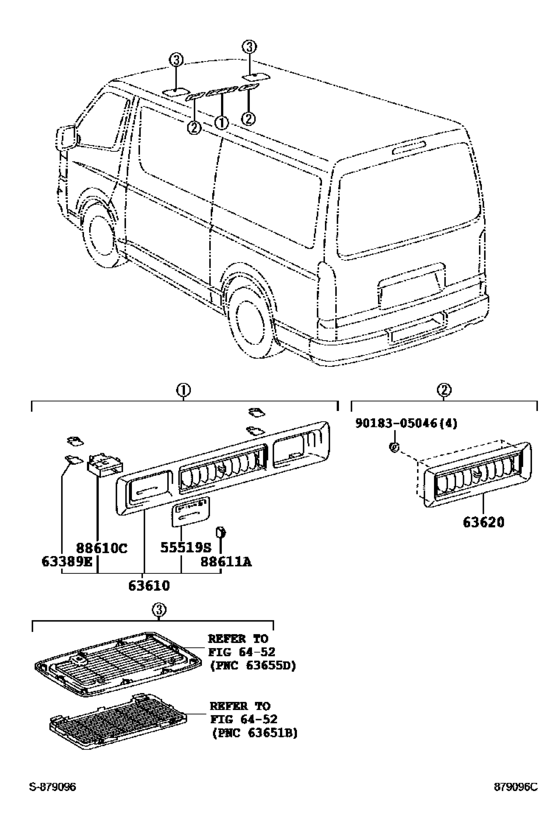

Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216) 11

#	OEM	Part name
55519	63697-26100	Label, Rear Cooler Control Information
63389	63389-26010	Retainer, Air Outlet Register
63610	63610-26070-B0	Register Assy, Air Outlet, No.1
63610	63610-26070-B1	Register Assy, Air Outlet, No.1
63610	63610-26090-B0	Register Assy, Air Outlet, No.1 - FOR RIGHT HAND DRIVE
63610	63610-26100-B0	Register Assy, Air Outlet, No.1 - FOR LEFT HAND DRIVE
63620	63620-26070-B0	Register Assy, Air Outlet, No.2
88610	88610-26090	Switch Sub-Assy, Cooler Control
88610	88610-95J03	Switch Assy, Cooler Control
88611	88611-28020-B4	Knob, Cooler Control Switch
9018305046	90183-05046	New Genuine Part

OEM	Part name	Category
63389-26010	Retainer, Air Outlet Register	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63610-26070-B0	Register Assy, Air Outlet, No.1	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63610-26070-B1	Register Assy, Air Outlet, No.1	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63610-26090-B0	Register Assy, Air Outlet, No.1 - FOR RIGHT HAND DRIVE	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63610-26100-B0	Register Assy, Air Outlet, No.1 - FOR LEFT HAND DRIVE	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63620-26070-B0	Register Assy, Air Outlet, No.2	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
63697-26100	Label, Rear Cooler Control Information	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
88610-26090	Switch Sub-Assy, Cooler Control	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
88610-95J03	Switch Assy, Cooler Control	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
88611-28020-B4	Knob, Cooler Control Switch	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
90183-05046	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([09.2007 - ] ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲﾂﾁ & ｴｱｱｳﾄﾚﾂﾄﾚｼﾞｽﾀ (0611-0709)KDH220,225 ; (0611- )TRH221,226 ; (0704- )TRH200..SRF..SG ; (0709- )KDH20#..SRF. .SG ; (0709- )KDH211,221,TRH211,216)
